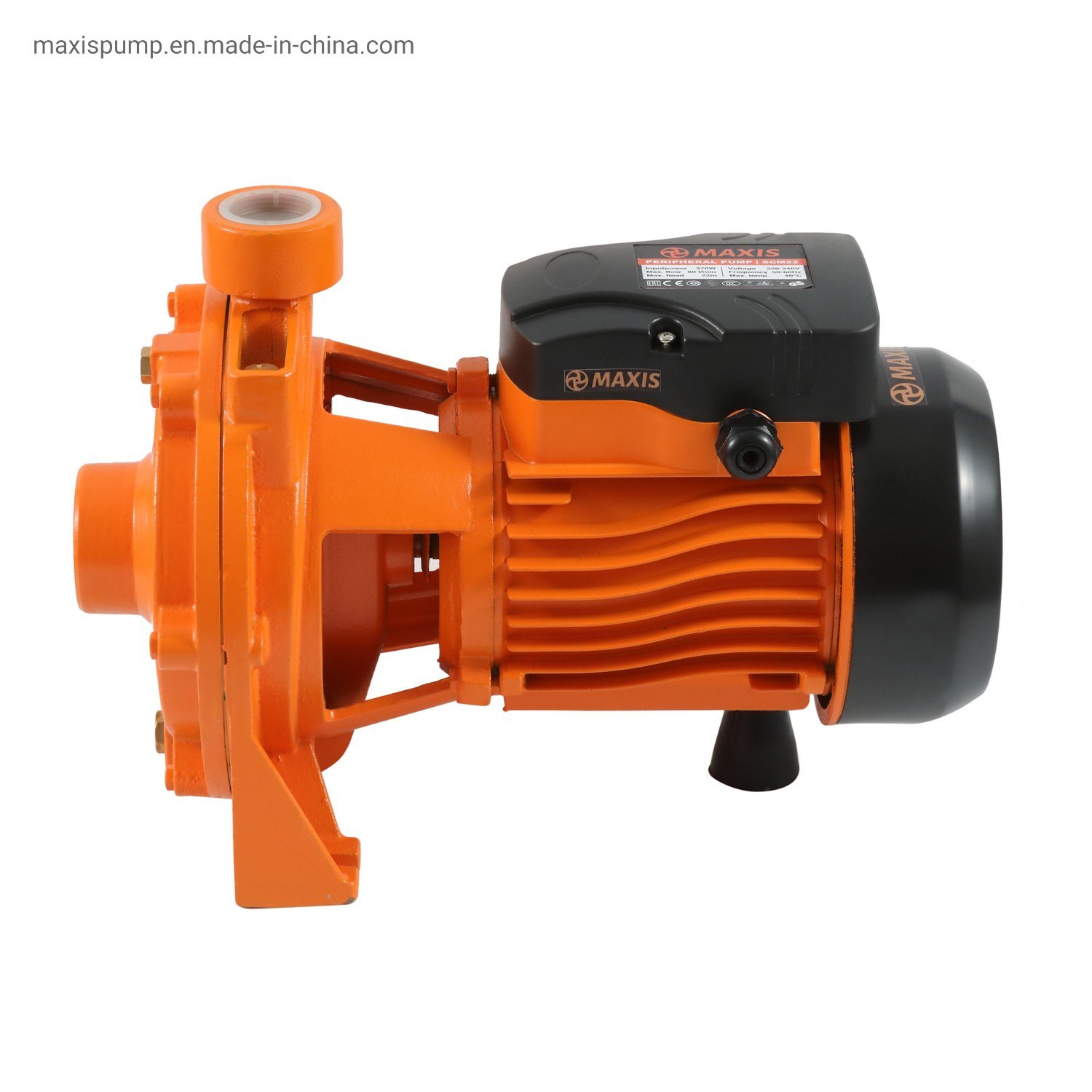

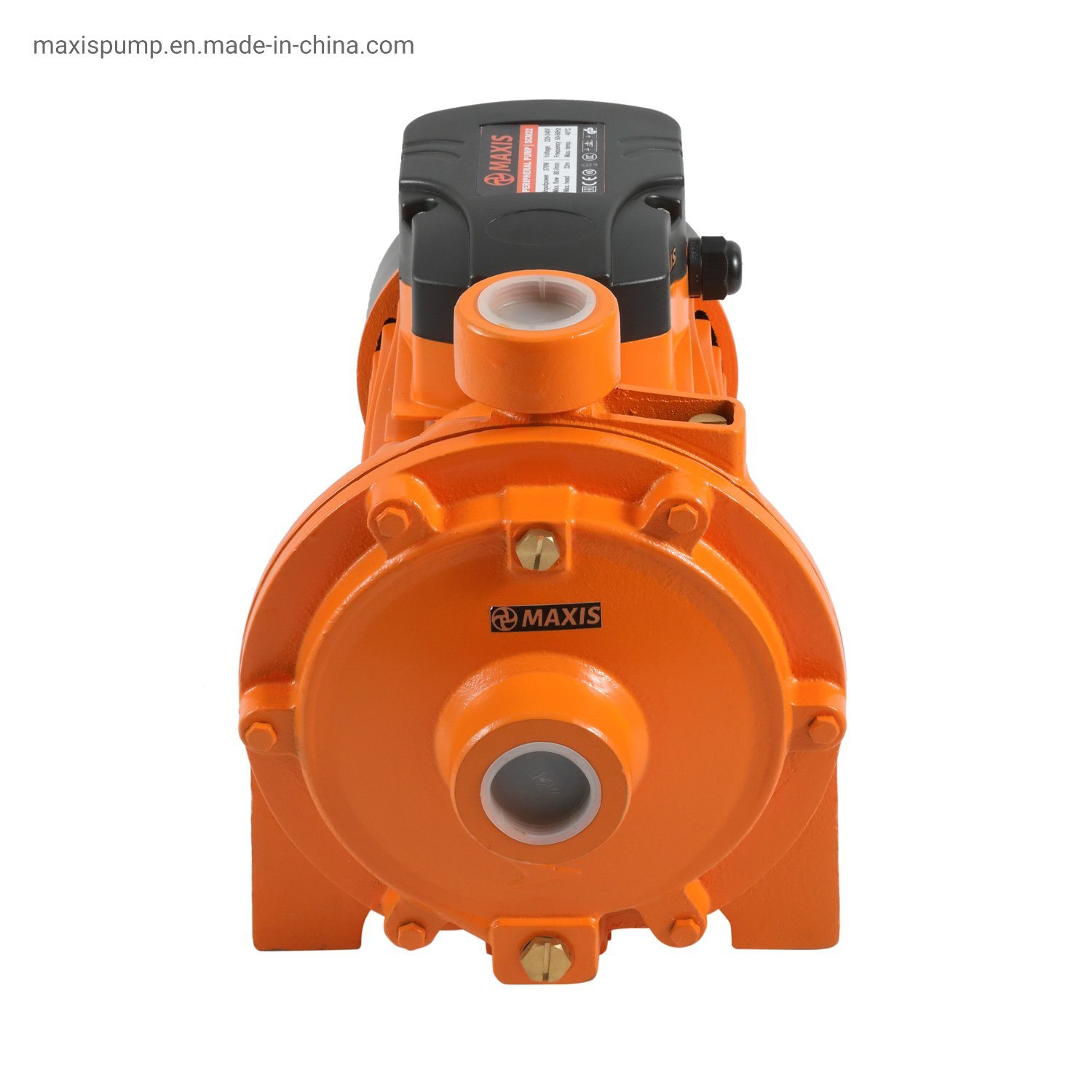

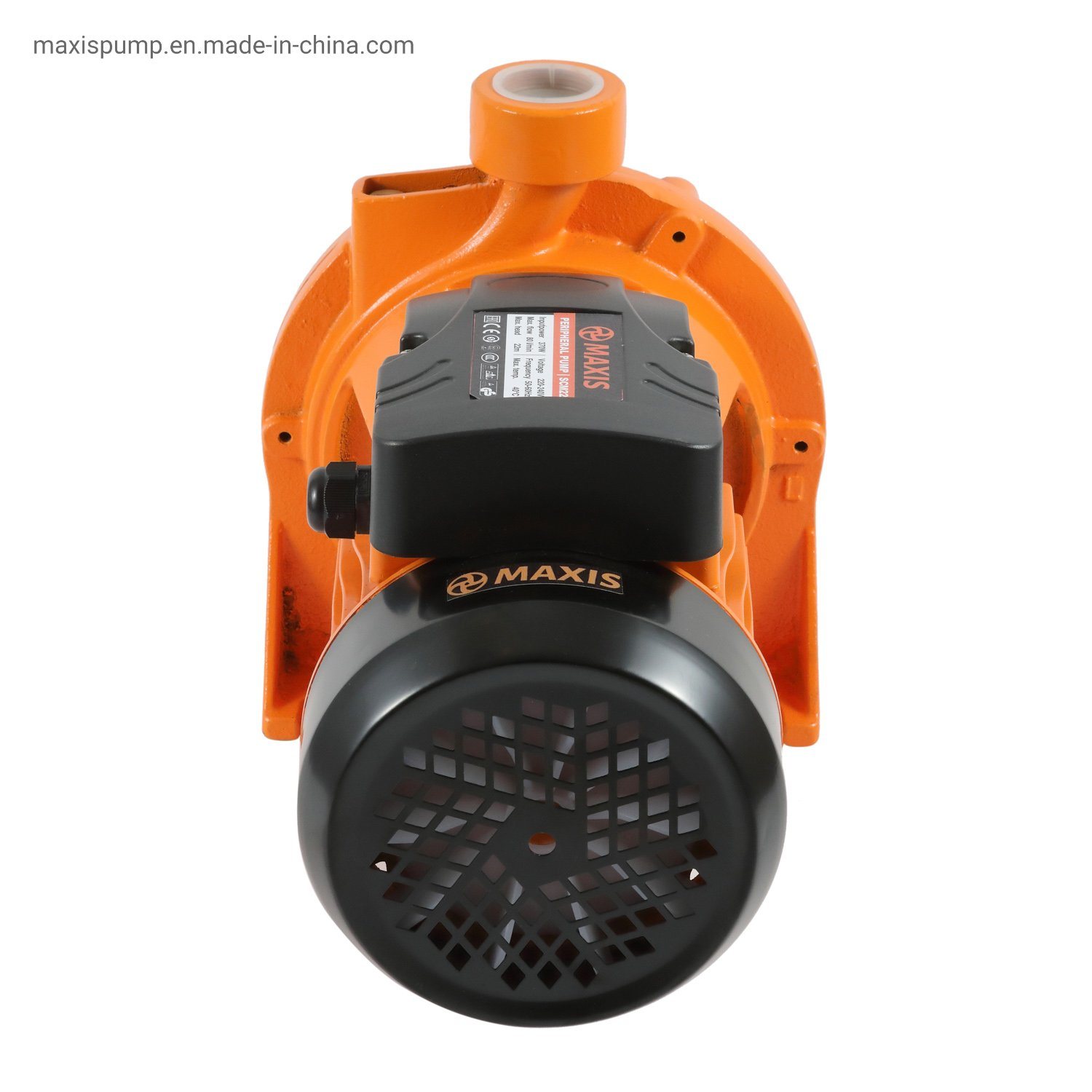

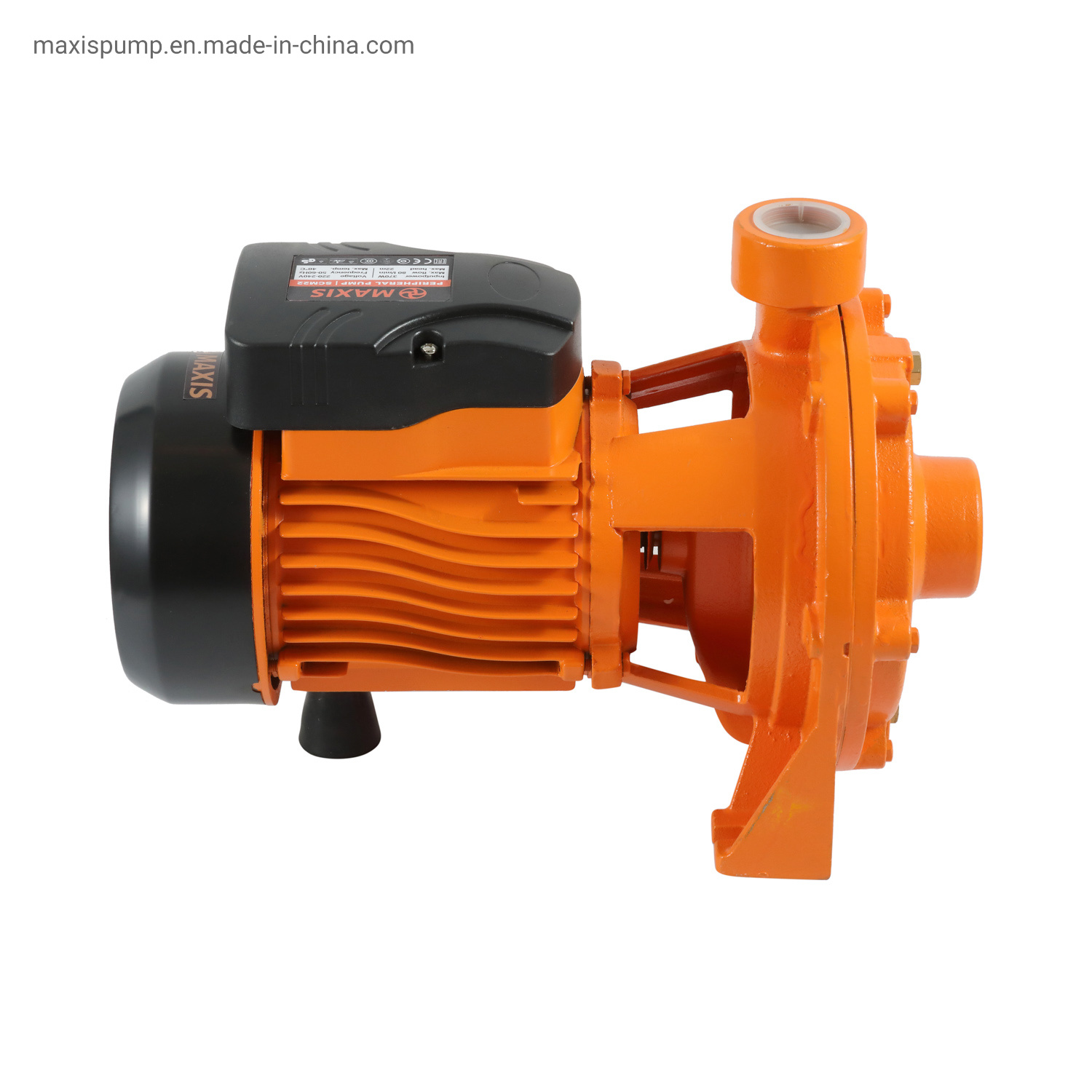

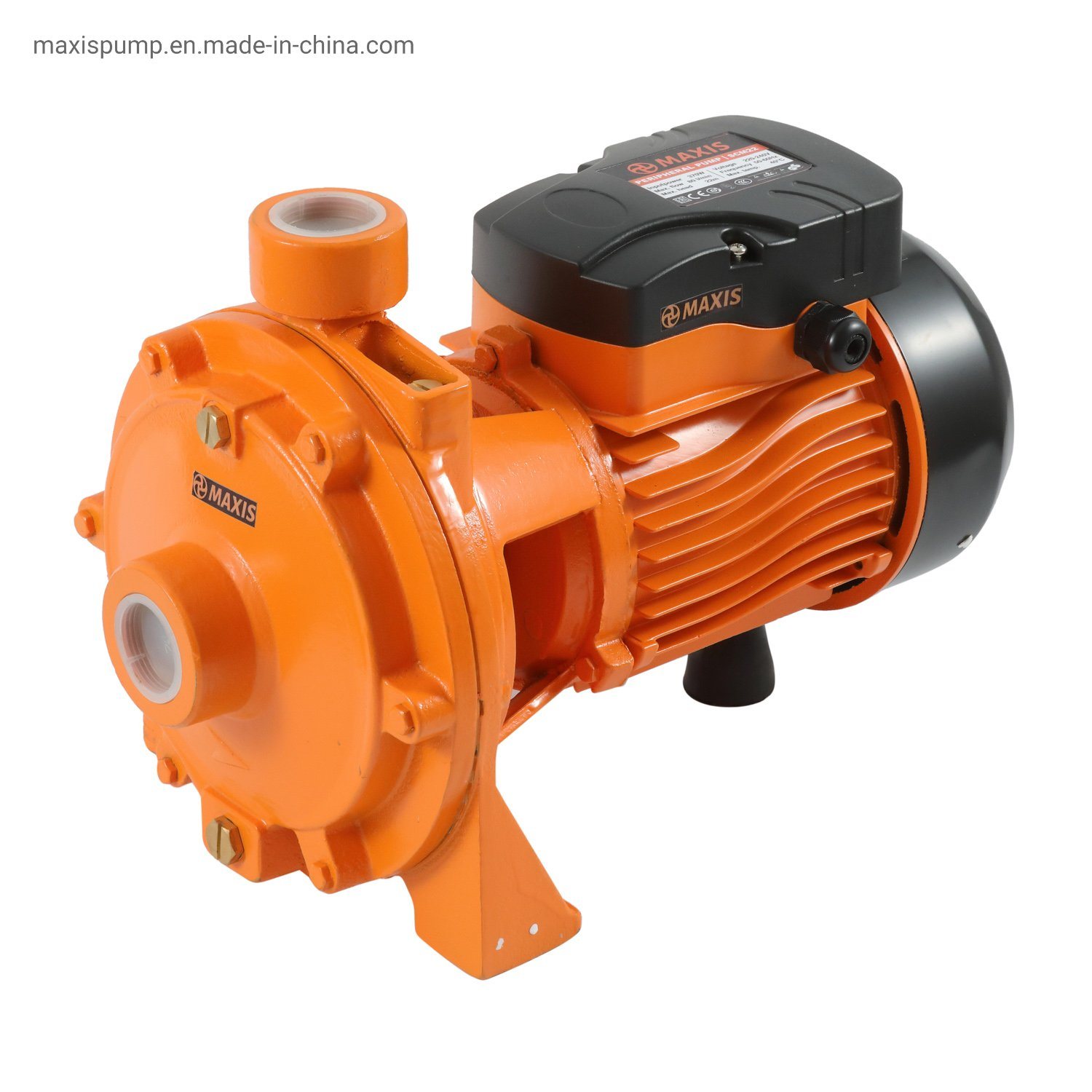

2 HP Casting Iron Electric Water Pump Hot Water Circulation and Pressure Boosting

Quantity:
Inquire Add to Basket

2 HP Casting Iron Electric Water Pump Hot Water Circulation and Pressure Boosting
2 HP Casting Iron Electric Water Pump Hot Water Circulation and Pressure Boosting
2 HP Casting Iron Electric Water Pump Hot Water Circulation and Pressure Boosting
2 HP Casting Iron Electric Water Pump Hot Water Circulation and Pressure Boosting
2 HP Casting Iron Electric Water Pump Hot Water Circulation and Pressure Boosting
2 HP Casting Iron Electric Water Pump Hot Water Circulation and Pressure Boosting

  • Free Spare Parts

  • 1 Year

  • 50-80m

  • 100-200 L/min

  • Motor

  • Cast Iron

  • 2MCP160/160

  • Single-stage Pump

  • Liquid Pumps

  • Electric

  • Electric Pump

  • Centrifugal Pump

  • Clarified Water Pump

  • Farm Irrigation

  • Water

  • Centrifugal Pump

  • Centrifugal Pump

  • CE GS RoHS

  • Color Box

  • Corrugated paper

  • MAXIS

  • China

  • 8413709990

  • 500000PCS/Year

  • US$ 30/Piece 1 Piece(Min.Order) | Request Sample

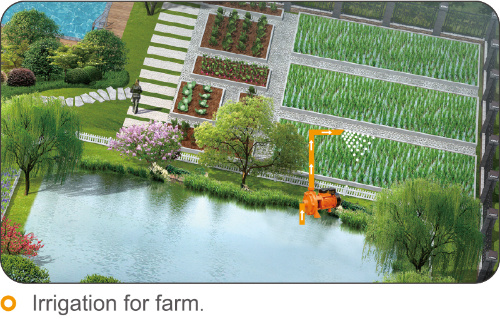

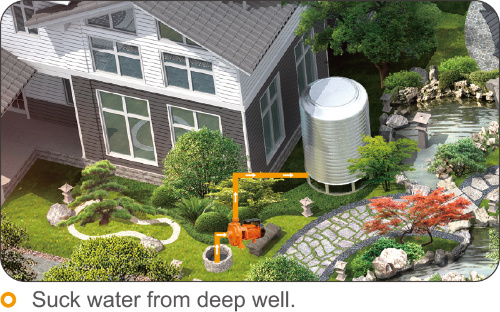

Application
1. Can be used to transfer clean water or other liquids similar to water in physical and chemical properties
2. Suitable for industrial use and urban water supply, pressure boosting for high buildings and fire fighting, garden irrigation, long-distance water transfer, heating ventilation and air controlling, circulation and pressure boosting for cold and hot water, and supporting equipment etc.
2 HP Casting Iron Electric Water Pump Hot Water Circulation and Pressure Boosting2 HP Casting Iron Electric Water Pump Hot Water Circulation and Pressure Boosting 2 HP Casting Iron Electric Water Pump Hot Water Circulation and Pressure Boosting
Pump
Special anti-rust treatment for cast iron pump body and support
Bass/plastic impeller both available
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304 / Carbon Steel shaft both available
High quality bearing
Max.liquid temperature: +40ºC
Max. suction:+8m
2 HP Casting Iron Electric Water Pump Hot Water Circulation and Pressure Boosting Techenical Data
Model Power HP Max Flow Max Head Max Suction Inlet / Outlet Protection rating
SCM22 370W 1/2 4800 L/H 80 L/Min 22 M 8 M 1'' x 1'' IPX4
SCM42 550W 3/4 5500 L/H 91 L/Min 25 M 8 M 1'' x 1'' IPX4
SCM50 750W 1 6000 L/H 100 L/Min 32 M 8 M 1'' x 1'' IPX4
2MCP160/160 1500W 2 6600 L/H 110 L/Min 55 M 8 M 1¼'' x 1'' IPX4

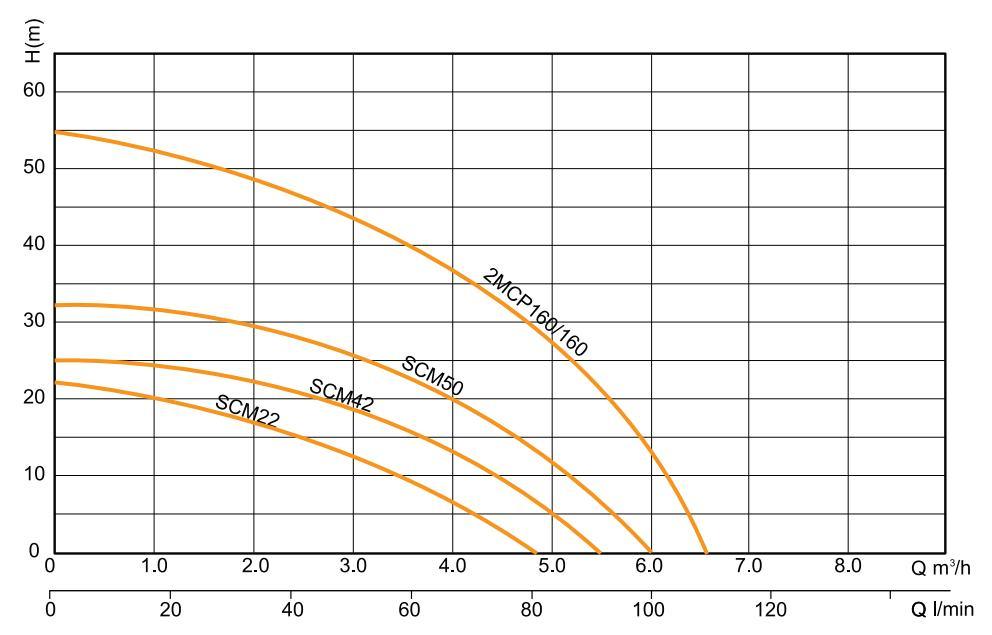

Performance Curve
2 HP Casting Iron Electric Water Pump Hot Water Circulation and Pressure Boosting
Company view
2 HP Casting Iron Electric Water Pump Hot Water Circulation and Pressure Boosting 2 HP Casting Iron Electric Water Pump Hot Water Circulation and Pressure Boosting 2 HP Casting Iron Electric Water Pump Hot Water Circulation and Pressure Boosting 2 HP Casting Iron Electric Water Pump Hot Water Circulation and Pressure Boosting 2 HP Casting Iron Electric Water Pump Hot Water Circulation and Pressure Boosting 2 HP Casting Iron Electric Water Pump Hot Water Circulation and Pressure Boosting
Welcome Inquiry:
2 HP Casting Iron Electric Water Pump Hot Water Circulation and Pressure Boosting
