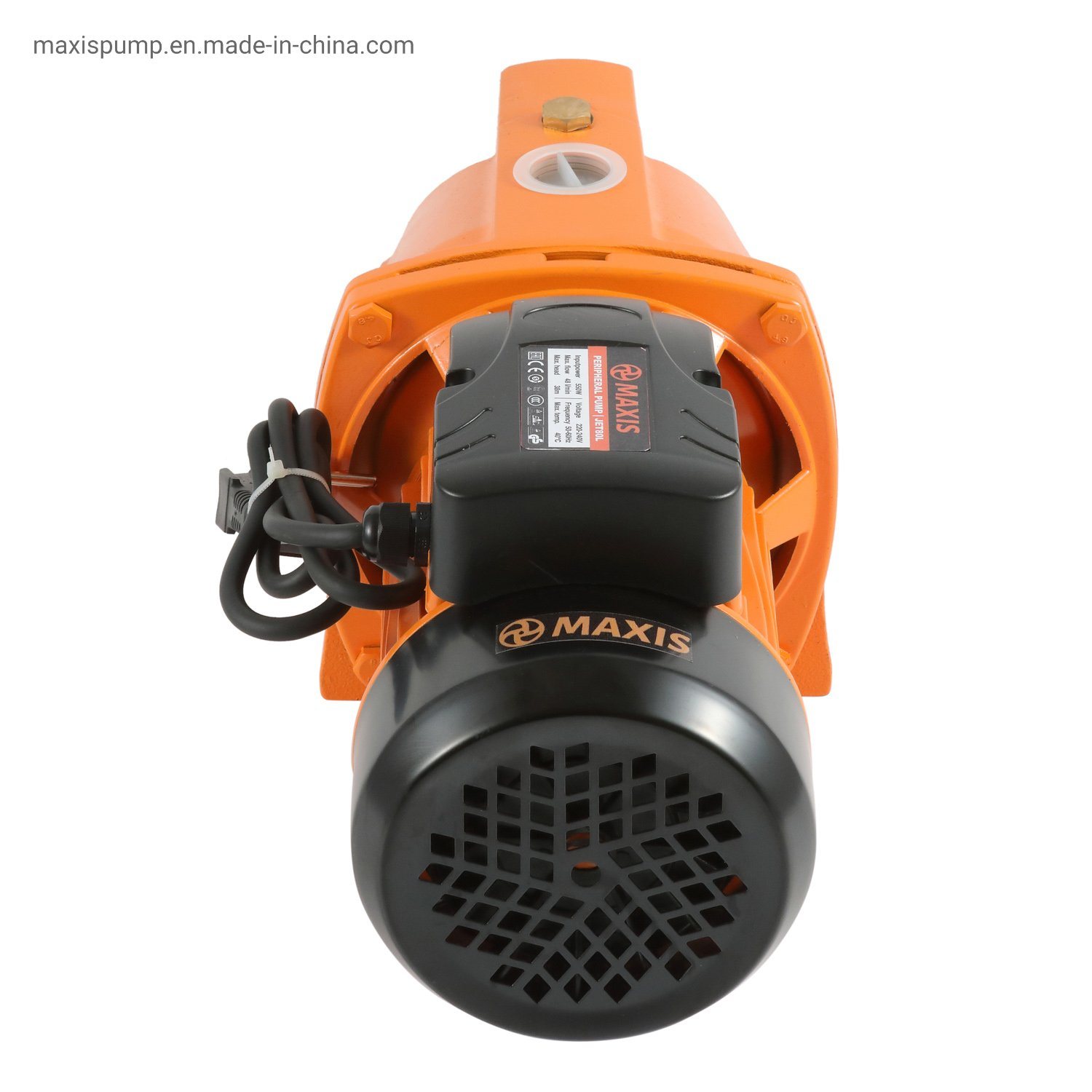

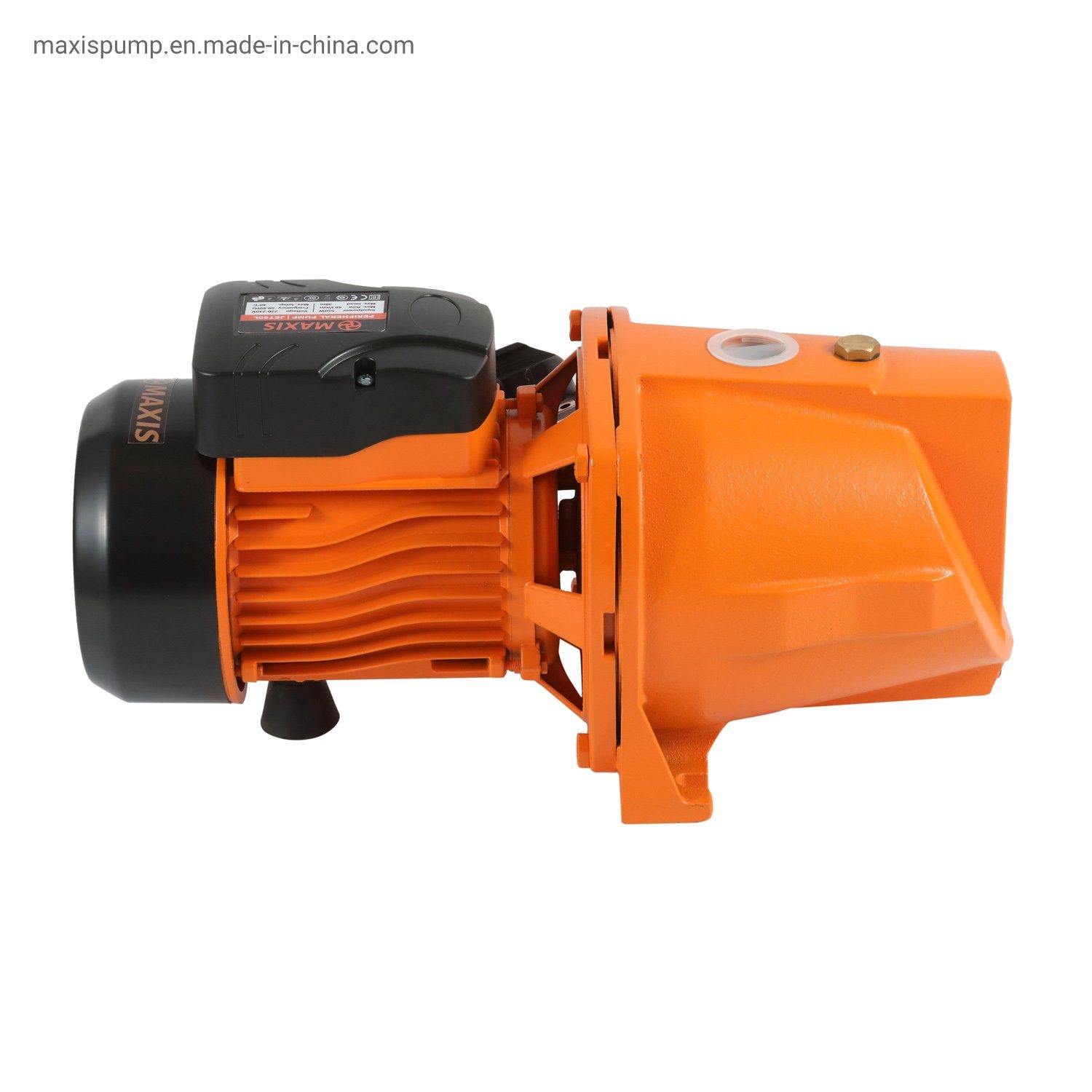

2/3 HP 550W Electric Jet Casting Iron Self-Priming Pump for Domestic Automatic Water Supply

Quantity:
Inquire Add to Basket

2/3 HP 550W Electric Jet Casting Iron Self-Priming Pump for Domestic Automatic Water Supply
2/3 HP 550W Electric Jet Casting Iron Self-Priming Pump for Domestic Automatic Water Supply
2/3 HP 550W Electric Jet Casting Iron Self-Priming Pump for Domestic Automatic Water Supply
2/3 HP 550W Electric Jet Casting Iron Self-Priming Pump for Domestic Automatic Water Supply
2/3 HP 550W Electric Jet Casting Iron Self-Priming Pump for Domestic Automatic Water Supply
2/3 HP 550W Electric Jet Casting Iron Self-Priming Pump for Domestic Automatic Water Supply

  • Free Spare Parts

  • 1 Year

  • 30-50m

  • <50 L/min

  • Motor

  • Cast Iron

  • JET80L

  • Single-stage Pump

  • Liquid Pumps

  • Electric

  • Electric Pump

  • Jet Pump

  • Casting Iron Pump

  • Farm Irrigation

  • Clear Water Pump

  • Centrifugal Pump

  • Jet Pump

  • CE GS RoHS

  • Color Box

  • Corrugated paper

  • MAXIS

  • China

  • 8413709990

  • 500000PCS/Year

  • US$ 30/Piece 1 Piece(Min.Order) | Request Sample

Application
1. Can be used to transfer clean water or other liquids similar to water in physical and chemical properties

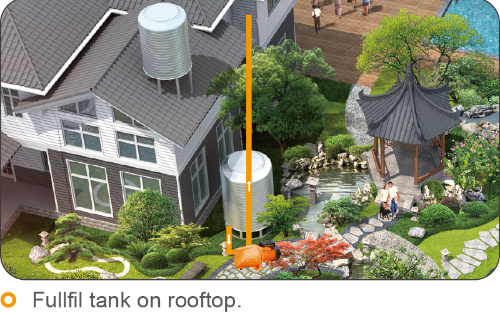

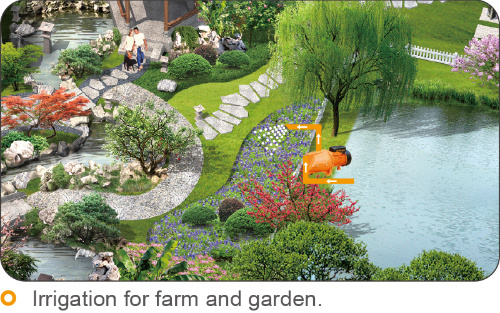

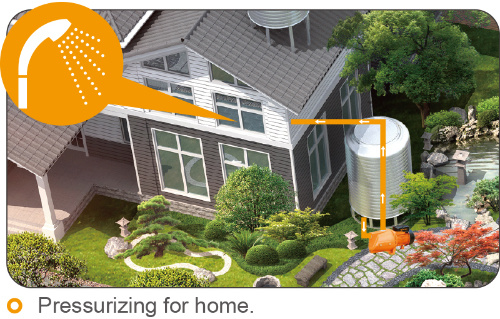

2. Suitable for water supply and drainage in garden irrigation greenhouses, fish breeding and poultry raising. The pump also can be used for domestic automatic water supply places, such as lifting water from a deep well, pressure boosting of running water ect.
2/3 HP 550W Electric Jet Casting Iron Self-Priming Pump for Domestic Automatic Water Supply
2/3 HP 550W Electric Jet Casting Iron Self-Priming Pump for Domestic Automatic Water Supply2/3 HP 550W Electric Jet Casting Iron Self-Priming Pump for Domestic Automatic Water Supply
Pump
Special anti-rust treatment for cast iron pump body and support
Bass/plastic impeller both available
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304 / Carbon Steel shaft both available
High quality bearing
Max.liquid temperature: +40ºC
Max. suction:+8m
2/3 HP 550W Electric Jet Casting Iron Self-Priming Pump for Domestic Automatic Water Supply Techenical Data
Model Power HP Max Flow Max Head Max Suction Inlet / Outlet Protection rating
JET60L 370W 1/2 2400 L/H 40 L/Min 30 M 8 M 1'' x 1'' IP44
JET80L 550W 3/4 2900 L/H 48 L/Min 38 M 8 M 1'' x 1'' IP44
JET100L 750W 1 3200 L/H 53 L/Min 45 M 8 M 1'' x 1'' IP44
JET150L 1100W 1.5 4000 L/H 66 L/Min 46 M 8 M 1'' x 1'' IP44
JET200L 1500W 2 4500 L/H 75 L/Min 50 M 8 M 1'' x 1'' IP44

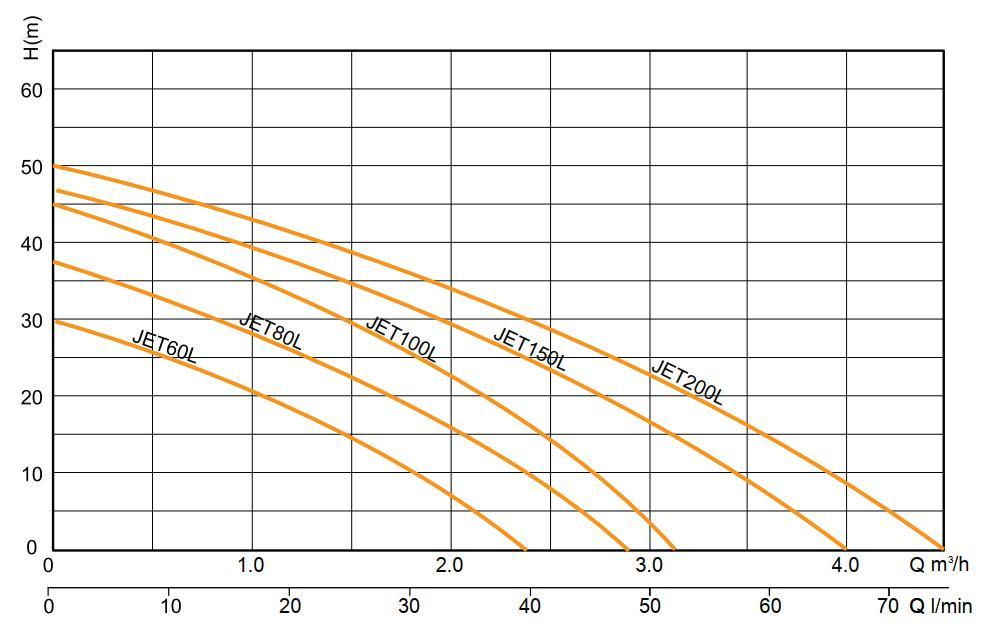

Performance Curve
2/3 HP 550W Electric Jet Casting Iron Self-Priming Pump for Domestic Automatic Water Supply
