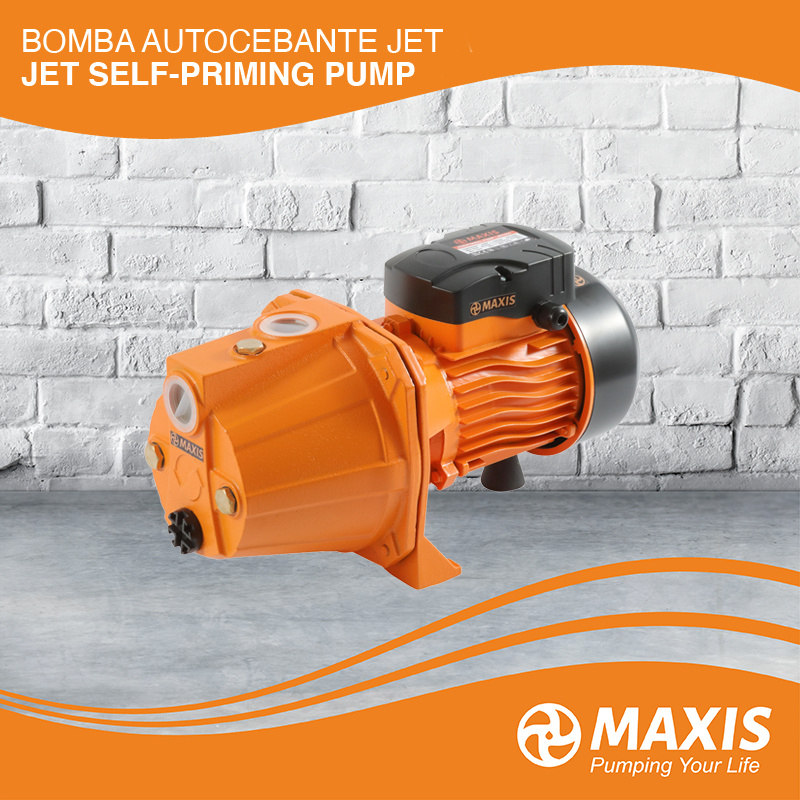

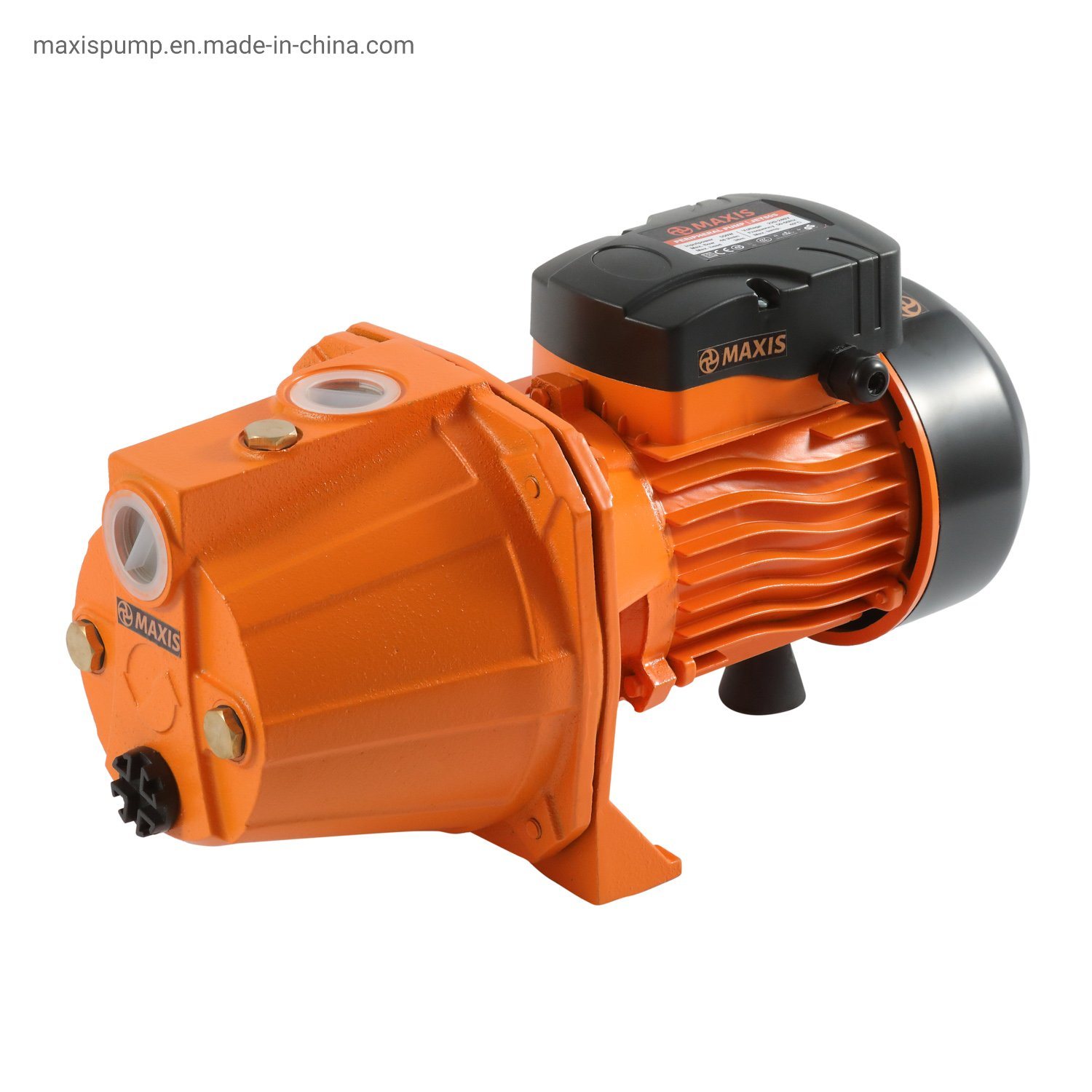

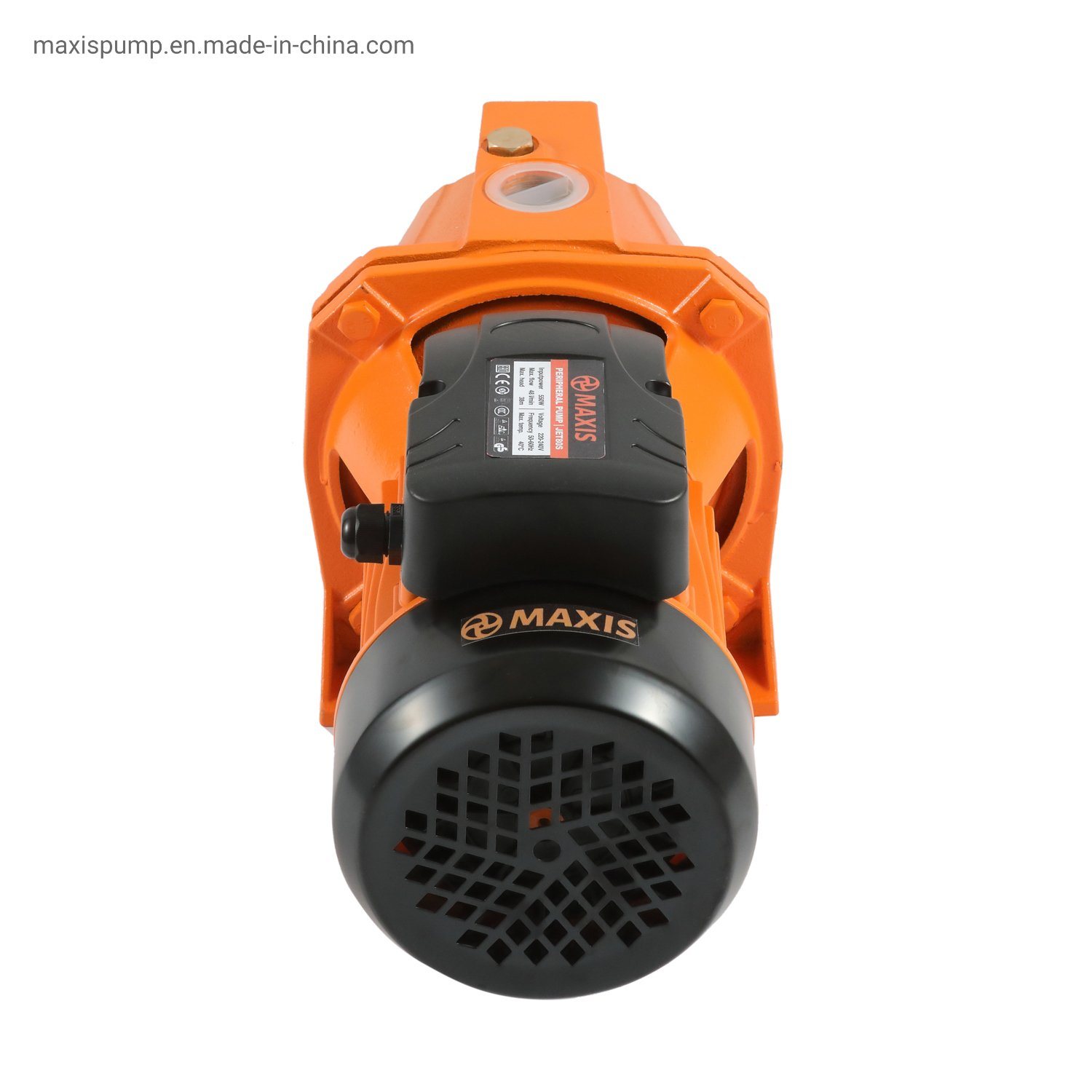

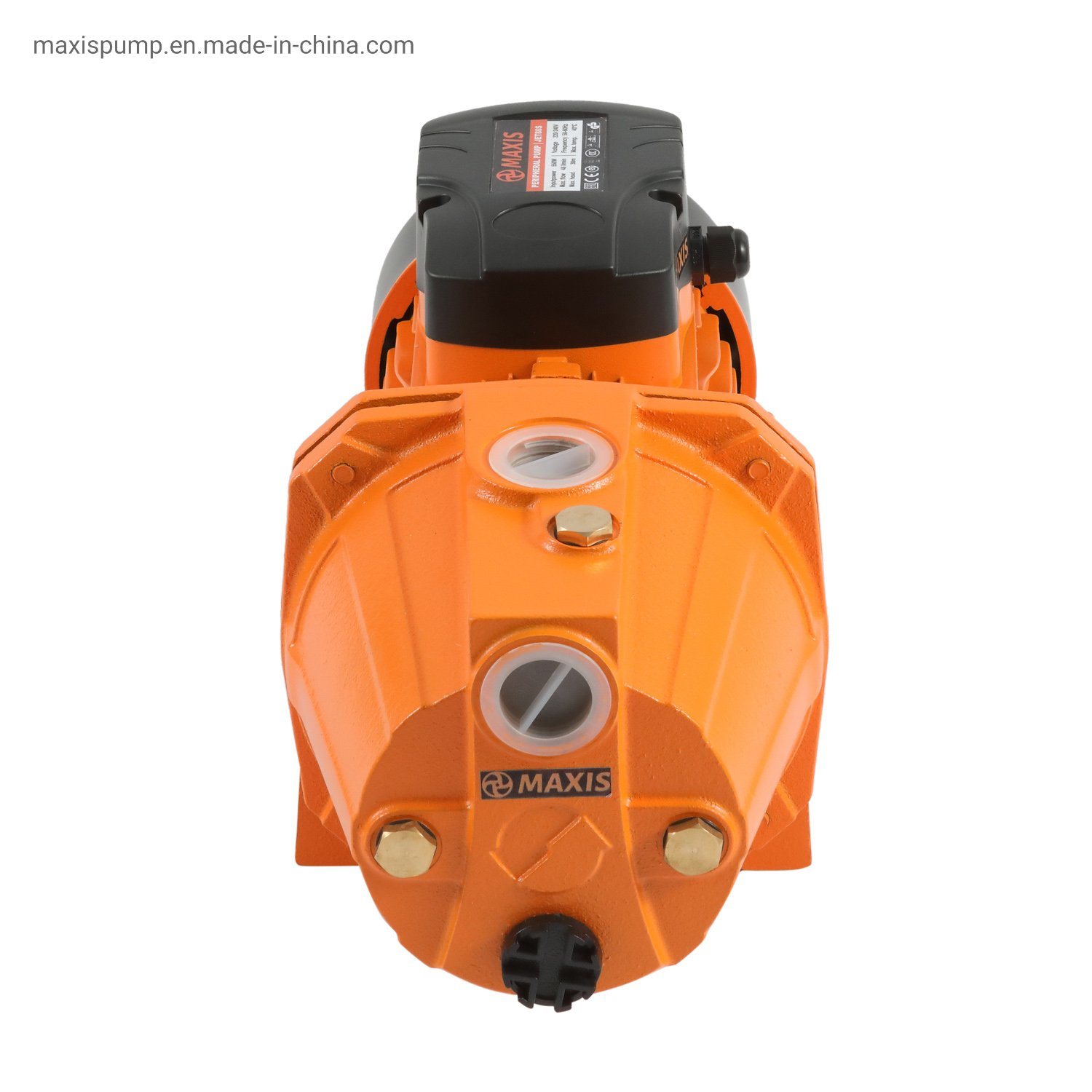

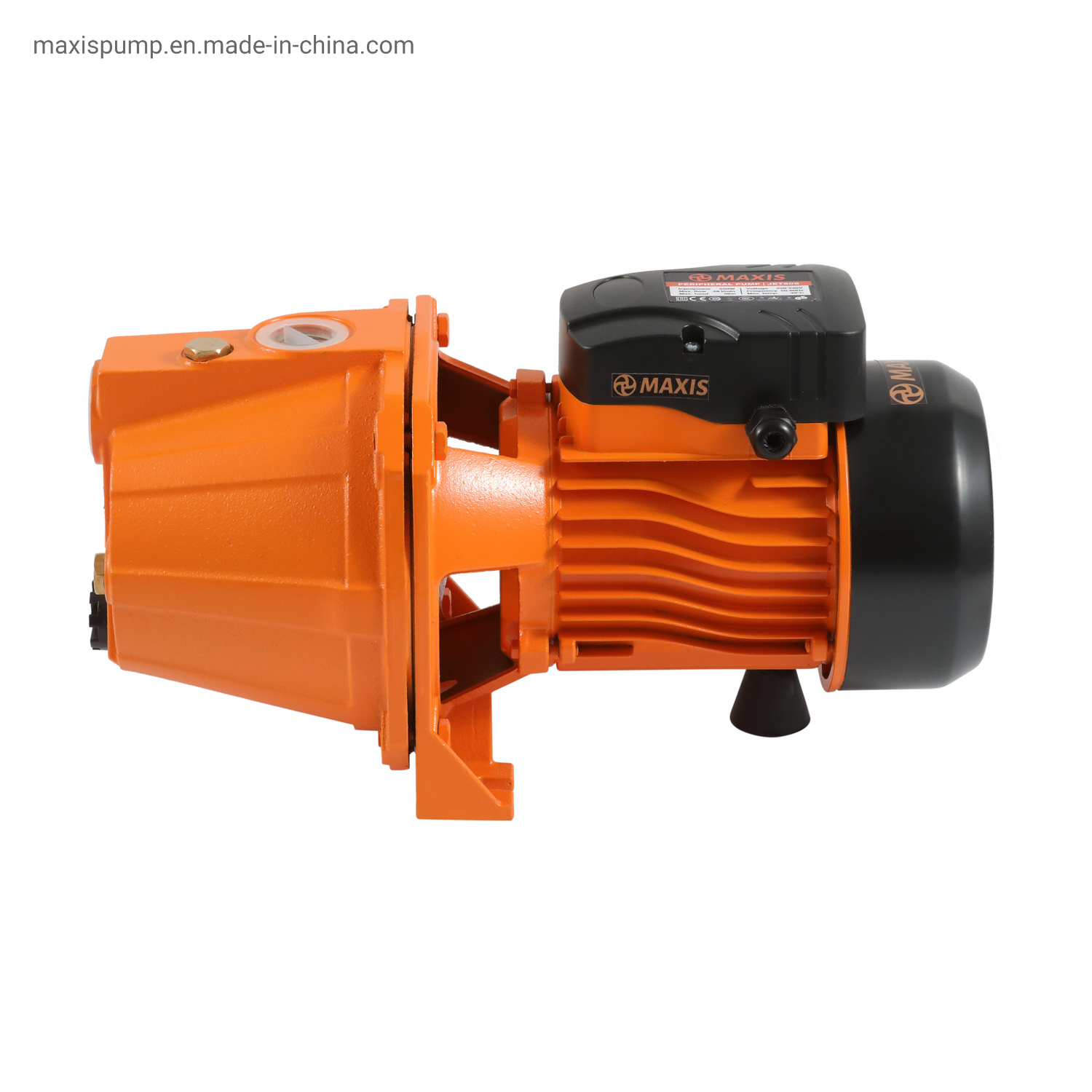

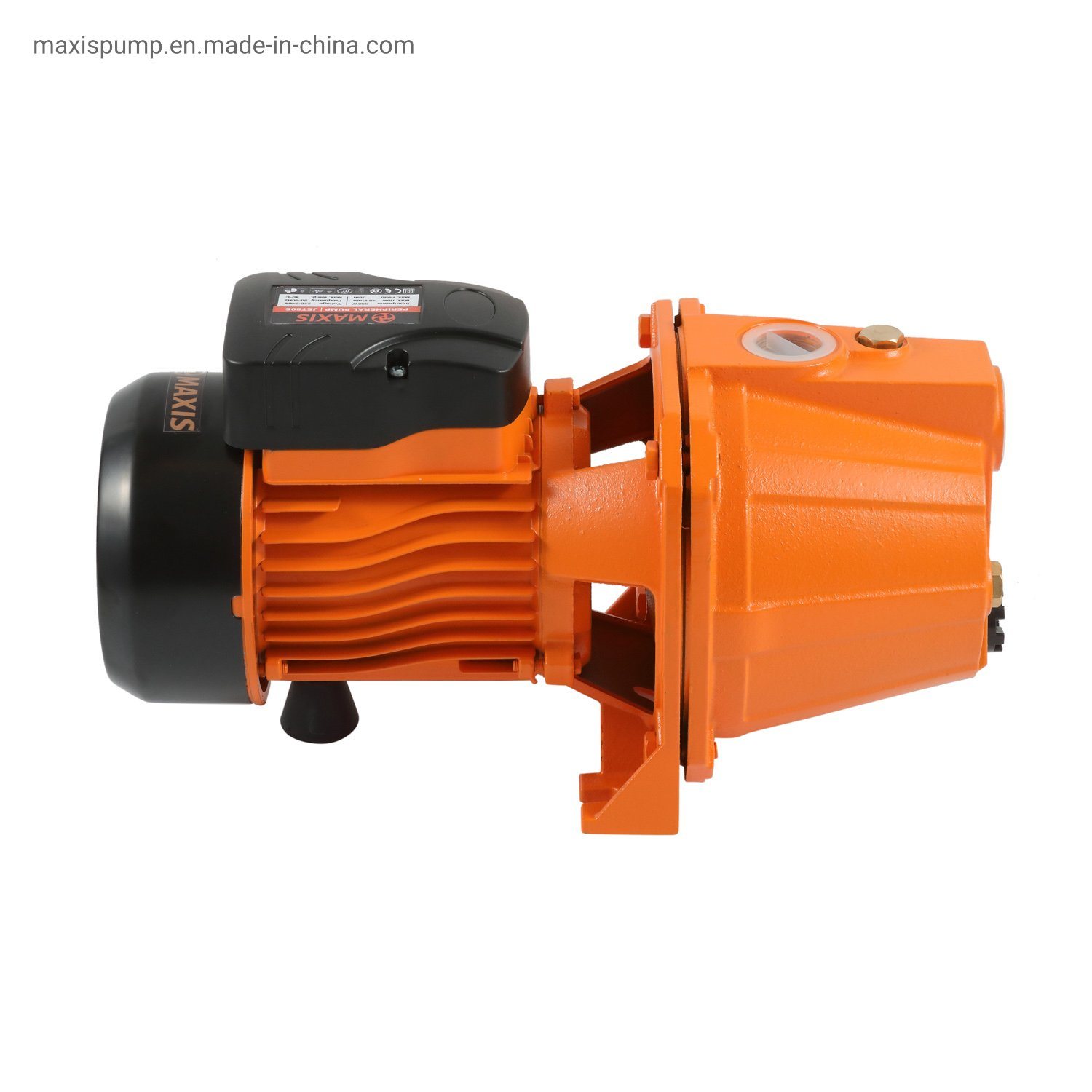

1HP Jet Self-Priming Electric Centrifugal Water Pump Use for Lifting Water From Deep Well

Quantity:
Inquire Add to Basket

1HP Jet Self-Priming Electric Centrifugal Water Pump Use for Lifting Water From Deep Well
1HP Jet Self-Priming Electric Centrifugal Water Pump Use for Lifting Water From Deep Well
1HP Jet Self-Priming Electric Centrifugal Water Pump Use for Lifting Water From Deep Well
1HP Jet Self-Priming Electric Centrifugal Water Pump Use for Lifting Water From Deep Well
1HP Jet Self-Priming Electric Centrifugal Water Pump Use for Lifting Water From Deep Well
1HP Jet Self-Priming Electric Centrifugal Water Pump Use for Lifting Water From Deep Well

  • Free Spare Parts

  • 1 Year

  • 30-50m

  • 50-100 L/min

  • Motor

  • Cast Iron

  • JET100S

  • Single-stage Pump

  • Liquid Pumps

  • Electric

  • Electric Pump

  • Jet Pump

  • Casting Iron Pump

  • Farm Irrigation

  • Water

  • Centrifugal Pump

  • Centrifugal Pump

  • CE GS RoHS

  • Color Box

  • Corrugated paper

  • MAXIS

  • China

  • 8413709990

  • 500000PCS/Year

  • US$ 30/Piece 1 Piece(Min.Order) | Request Sample

Application
1. Can be used to transfer clean water or other liquids similar to water in physical and chemical properties

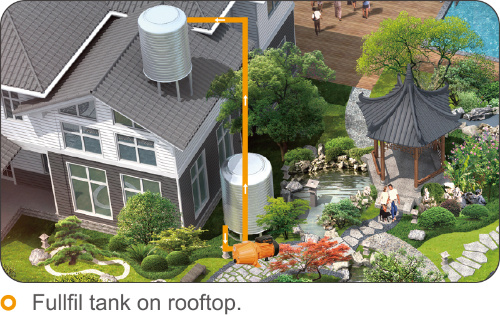

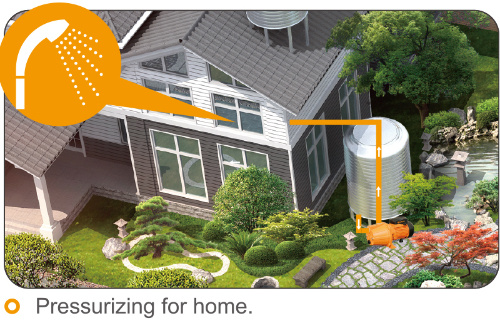

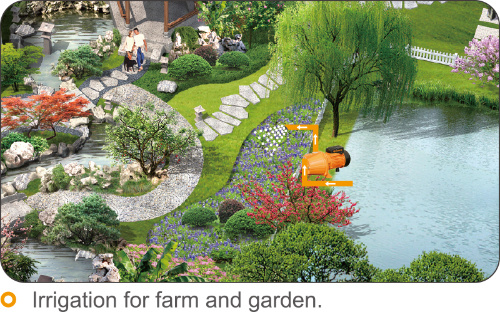

2. Suitable for water supply and drainage in garden irrigation greenhouses, fish breeding and poultry raising. The pump also can be used for domestic automatic water supply places, such as lifting water from a deep well, pressure boosting of running water ect.
1HP Jet Self-Priming Electric Centrifugal Water Pump Use for Lifting Water From Deep Well 1HP Jet Self-Priming Electric Centrifugal Water Pump Use for Lifting Water From Deep Well 1HP Jet Self-Priming Electric Centrifugal Water Pump Use for Lifting Water From Deep Well
Pump
Special anti-rust treatment for cast iron pump body and support
Bass/plastic impeller both available
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304 / Carbon Steel shaft both available
High quality bearing
Max.liquid temperature: +40ºC
Max. suction:+8m
1HP Jet Self-Priming Electric Centrifugal Water Pump Use for Lifting Water From Deep Well Techenical Data
Model Power HP Max Flow Max Head Max Suction Inlet / Outlet Protection rating
JET60S 370W 1/2 2400 L/H 40 L/Min 30 M 8 M 1'' x 1'' IP44
JET80S 550W 3/4 2900 L/H 48 L/Min 38 M 8 M 1'' x 1'' IP44
JET100S 750W 1 3200 L/H 53 L/Min 45 M 8 M 1'' x 1'' IP44

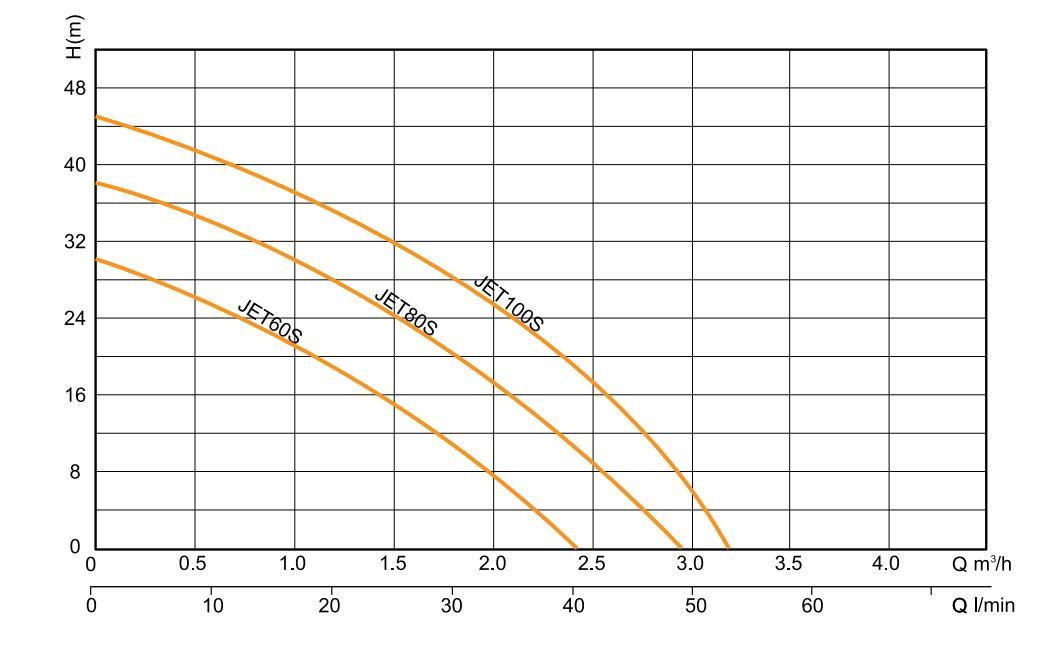

Performance Curve
1HP Jet Self-Priming Electric Centrifugal Water Pump Use for Lifting Water From Deep Well
Company view
1HP Jet Self-Priming Electric Centrifugal Water Pump Use for Lifting Water From Deep Well 1HP Jet Self-Priming Electric Centrifugal Water Pump Use for Lifting Water From Deep Well 1HP Jet Self-Priming Electric Centrifugal Water Pump Use for Lifting Water From Deep Well 1HP Jet Self-Priming Electric Centrifugal Water Pump Use for Lifting Water From Deep Well 1HP Jet Self-Priming Electric Centrifugal Water Pump Use for Lifting Water From Deep Well 1HP Jet Self-Priming Electric Centrifugal Water Pump Use for Lifting Water From Deep Well
