1/2HP Electric Cast Iron Peripheral Pressure Transfer Clean Vortex Low Price Water Pump Qb60

Quantity:
Inquire Add to Basket

1/2HP Electric Cast Iron Peripheral Pressure Transfer Clean Vortex Low Price Water Pump Qb60
1/2HP Electric Cast Iron Peripheral Pressure Transfer Clean Vortex Low Price Water Pump Qb60
1/2HP Electric Cast Iron Peripheral Pressure Transfer Clean Vortex Low Price Water Pump Qb60
1/2HP Electric Cast Iron Peripheral Pressure Transfer Clean Vortex Low Price Water Pump Qb60
1/2HP Electric Cast Iron Peripheral Pressure Transfer Clean Vortex Low Price Water Pump Qb60
1/2HP Electric Cast Iron Peripheral Pressure Transfer Clean Vortex Low Price Water Pump Qb60

  • Free Spare Parts

  • 1 Year

  • 30-50m

  • <50 L/min

  • Motor

  • Cast Iron

  • QB60

  • Single-stage Pump

  • Liquid Pumps

  • Electric

  • Electric Pump

  • Peripheral Pump

  • Agriculture Irrigation

  • Domestic

  • Clean Water

  • Wear Pump

  • Vortex Pump

  • Color Box

  • Casting iron

  • MAXIS

  • China

  • 8413709990

  • 1000000PCS/Year

  • Available | Customized Request

Application

1. Can be used to transfer clean water or other liquids similar to water in physical and chemical properties

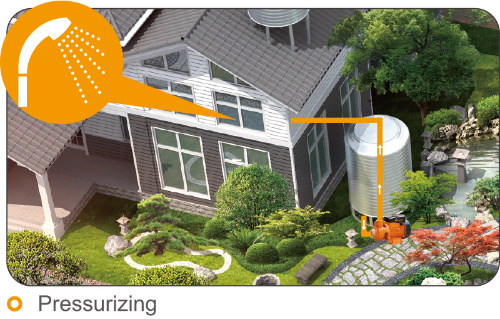

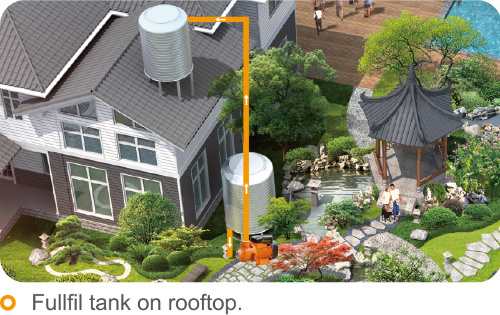

2. Suitable for industrial use and urban water supply, pressure boosting for high buildings and fire fighting, garden irrigation, long-distance water transfer, heating ventilation and air controlling, circulation and pressure boosting for cold and hot water, and supporting equipment etc.
1/2HP Electric Cast Iron Peripheral Pressure Transfer Clean Vortex Low Price Water Pump Qb601/2HP Electric Cast Iron Peripheral Pressure Transfer Clean Vortex Low Price Water Pump Qb60 1/2HP Electric Cast Iron Peripheral Pressure Transfer Clean Vortex Low Price Water Pump Qb60

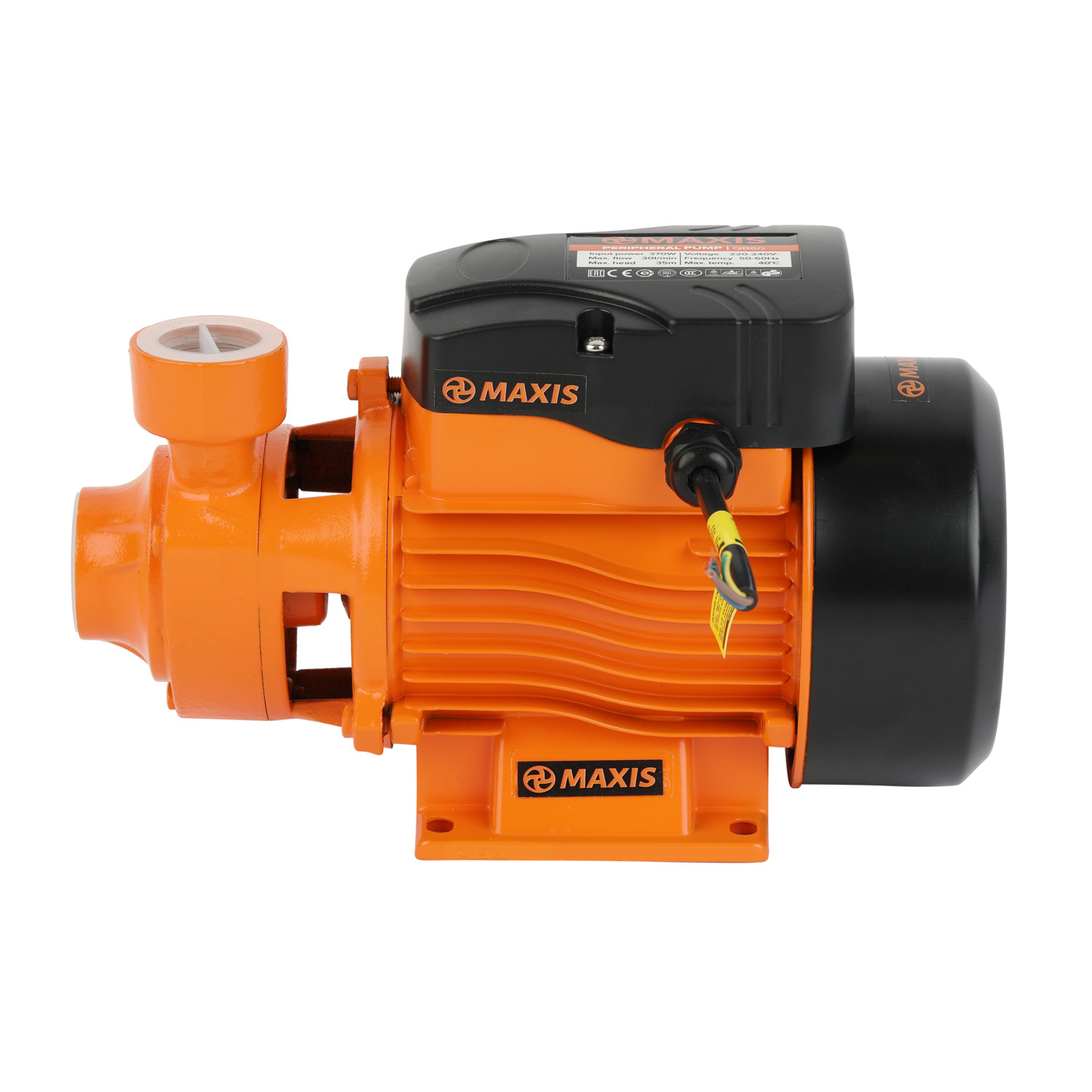

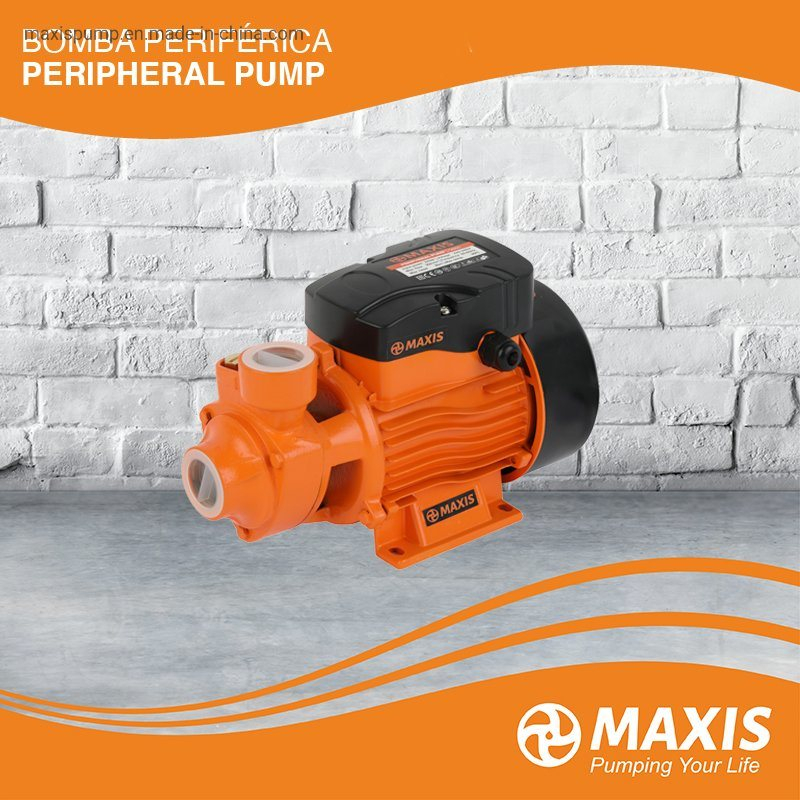

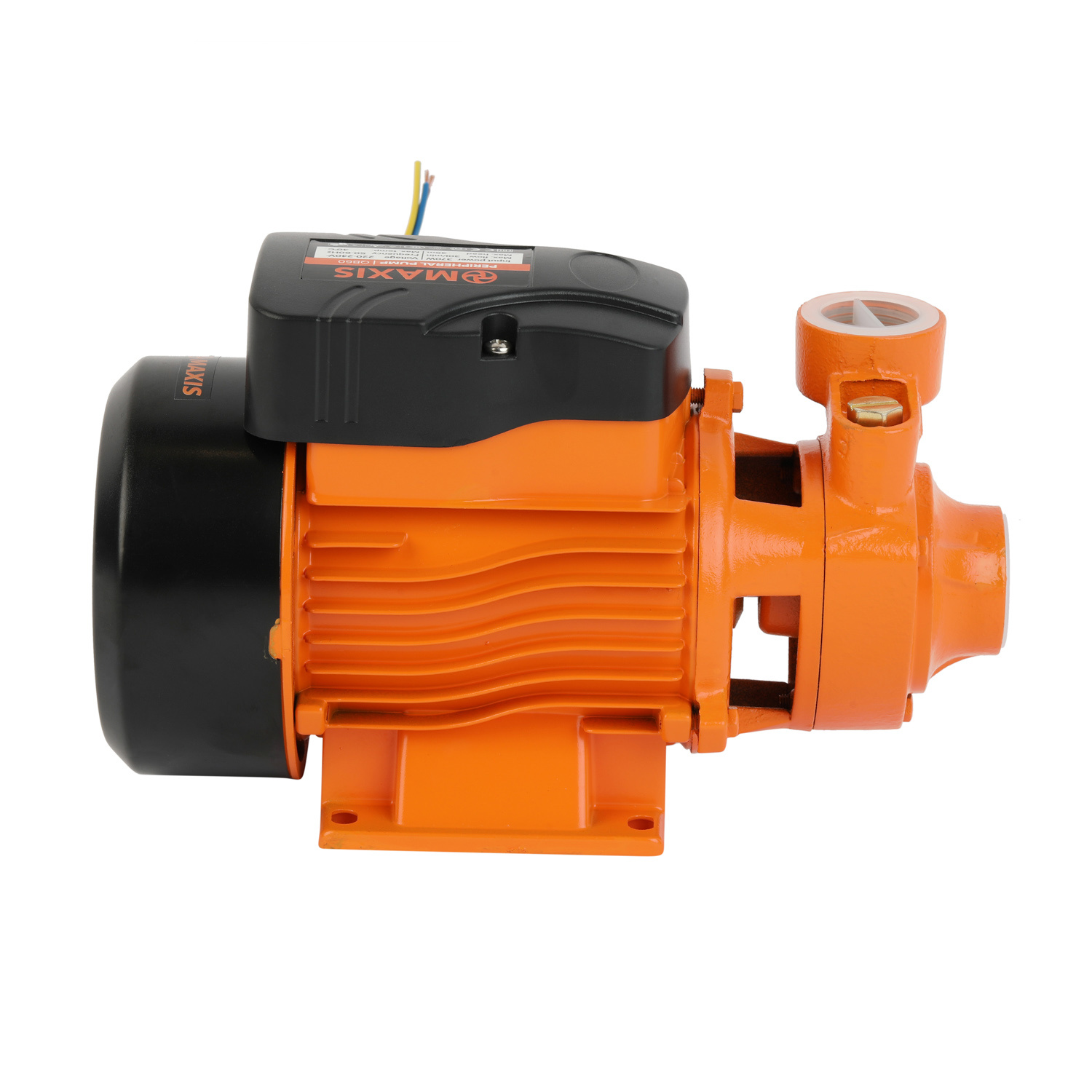

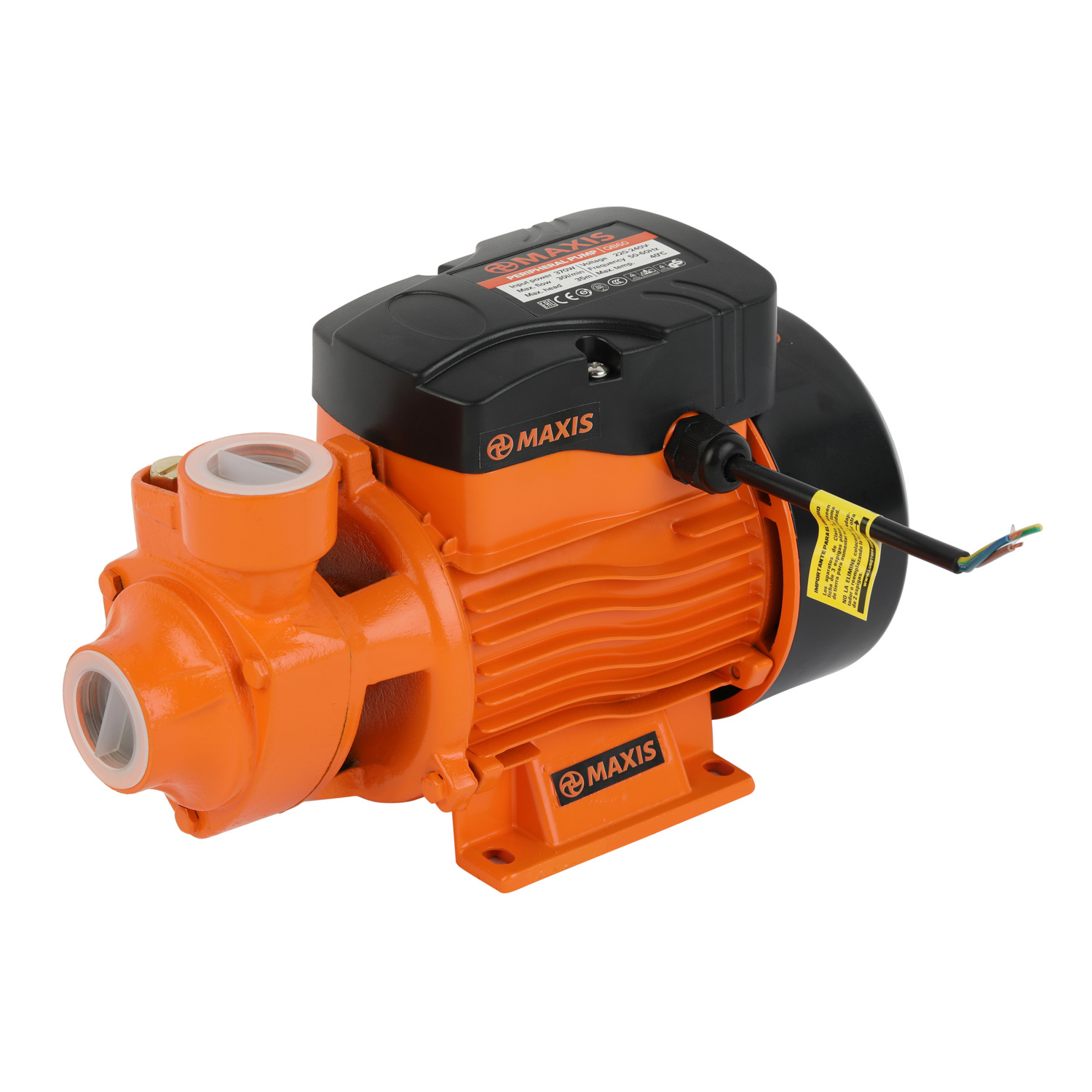

Pump

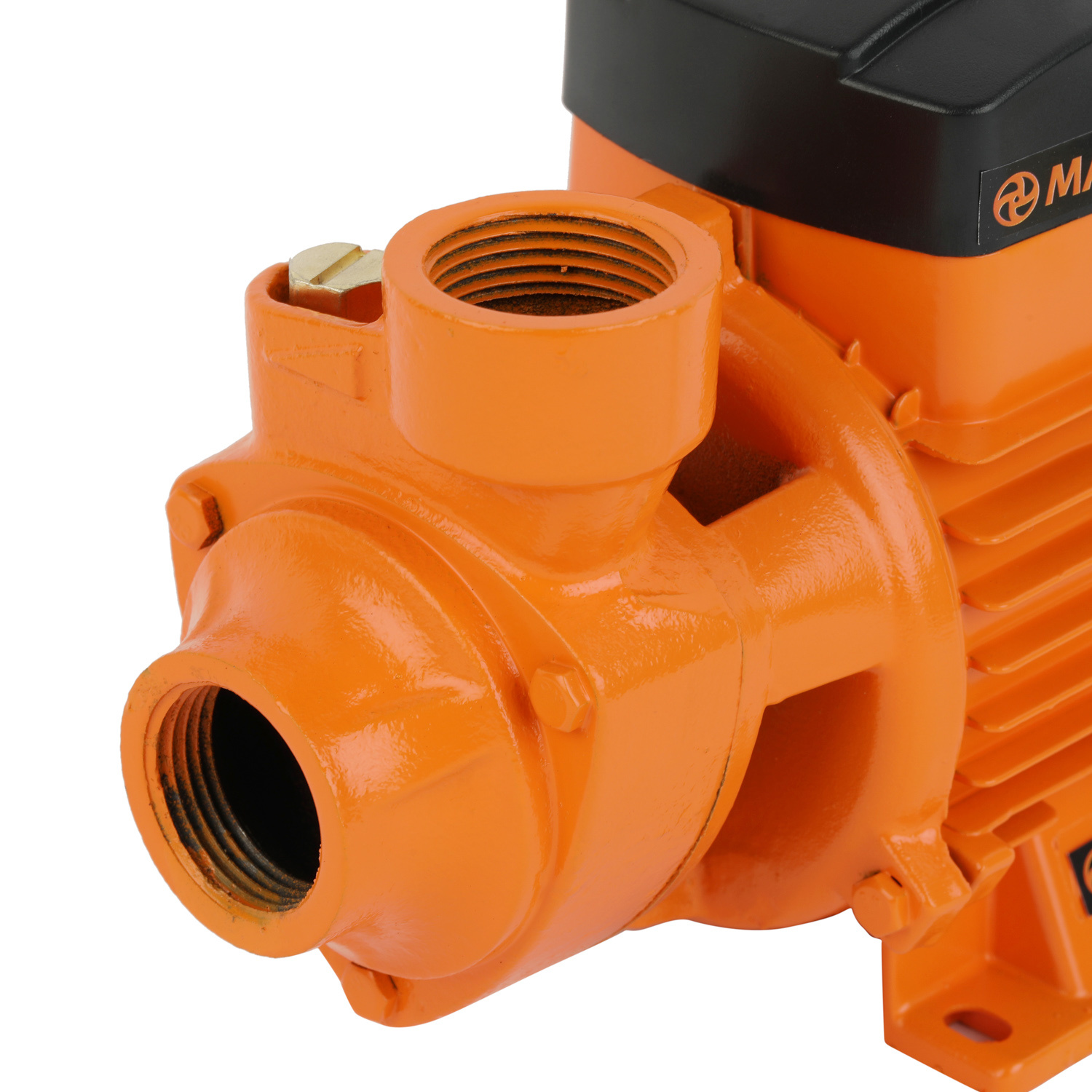

Special anti-rust treatment for cast iron pump body and support
Anti-block system for impeller
Bass impeller

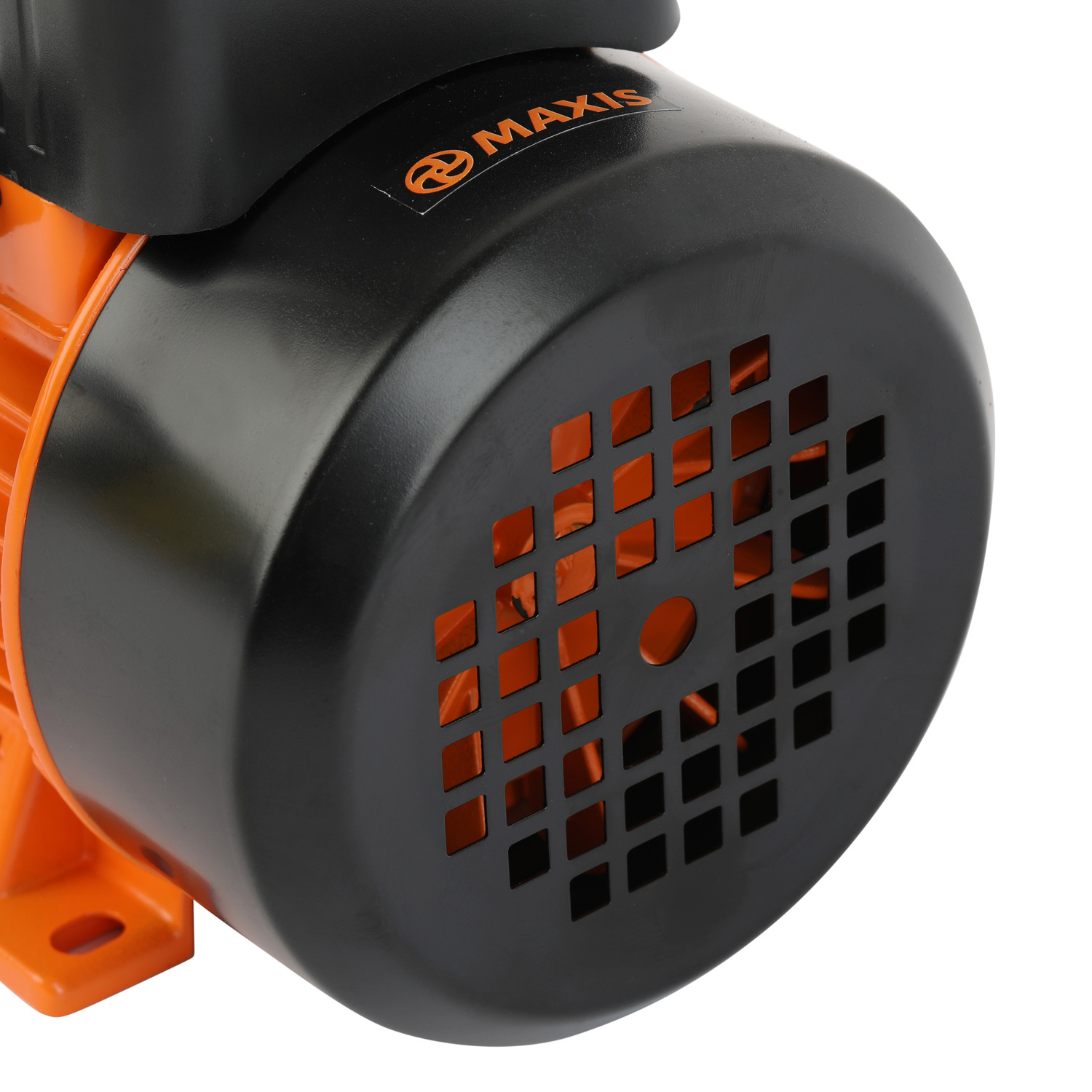

Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304/carbon steel shaft both available
Max.liquid temperature: +40ºC
Max. suction:+8m
1/2HP Electric Cast Iron Peripheral Pressure Transfer Clean Vortex Low Price Water Pump Qb60
Technical Data
Model Power HP Max Flow Max Head Max Suction Inlet / Outlet Protection rating
QB60 370W 1/2 2100 L/H 35 L/Min 35 M 8 M 1'' x 1'' IPX4
QB70 550W 3/4 2400 L/H 40 L/Min 50 M 8 M 1'' x 1'' IPX4
QB80 750W 1 3000 L/H 50 L/Min 60 M 8 M 1'' x 1'' IPX4

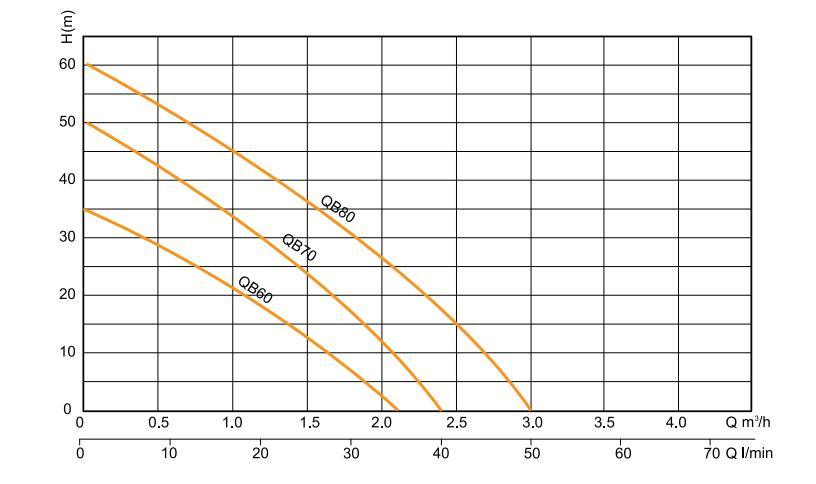

Performance Curve
1/2HP Electric Cast Iron Peripheral Pressure Transfer Clean Vortex Low Price Water Pump Qb60

Company view
1/2HP Electric Cast Iron Peripheral Pressure Transfer Clean Vortex Low Price Water Pump Qb601/2HP Electric Cast Iron Peripheral Pressure Transfer Clean Vortex Low Price Water Pump Qb601/2HP Electric Cast Iron Peripheral Pressure Transfer Clean Vortex Low Price Water Pump Qb601/2HP Electric Cast Iron Peripheral Pressure Transfer Clean Vortex Low Price Water Pump Qb601/2HP Electric Cast Iron Peripheral Pressure Transfer Clean Vortex Low Price Water Pump Qb601/2HP Electric Cast Iron Peripheral Pressure Transfer Clean Vortex Low Price Water Pump Qb60
Welcome Inquiry

1/2HP Electric Cast Iron Peripheral Pressure Transfer Clean Vortex Low Price Water Pump Qb60
