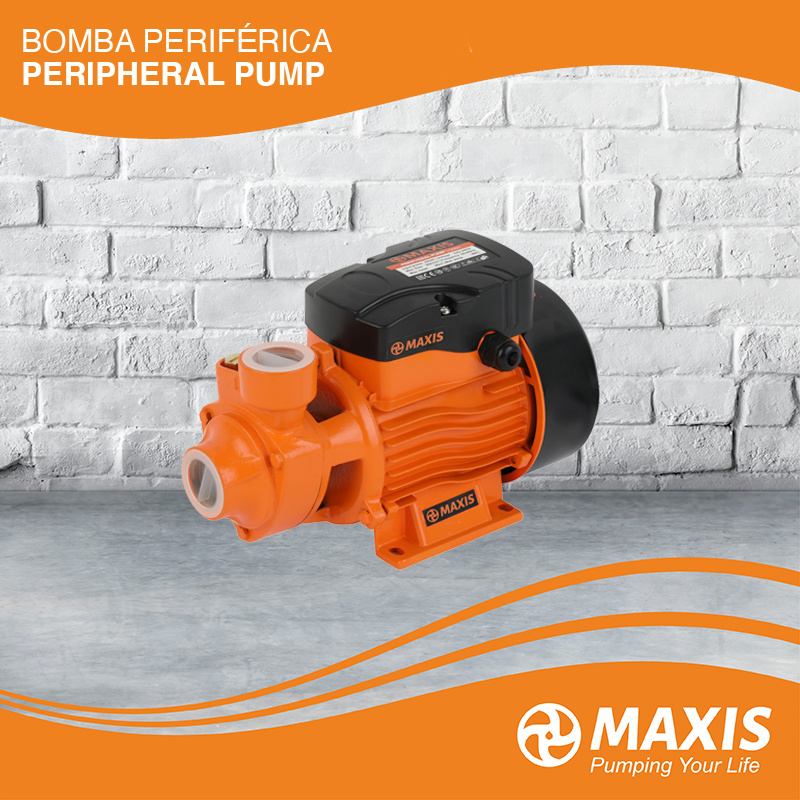

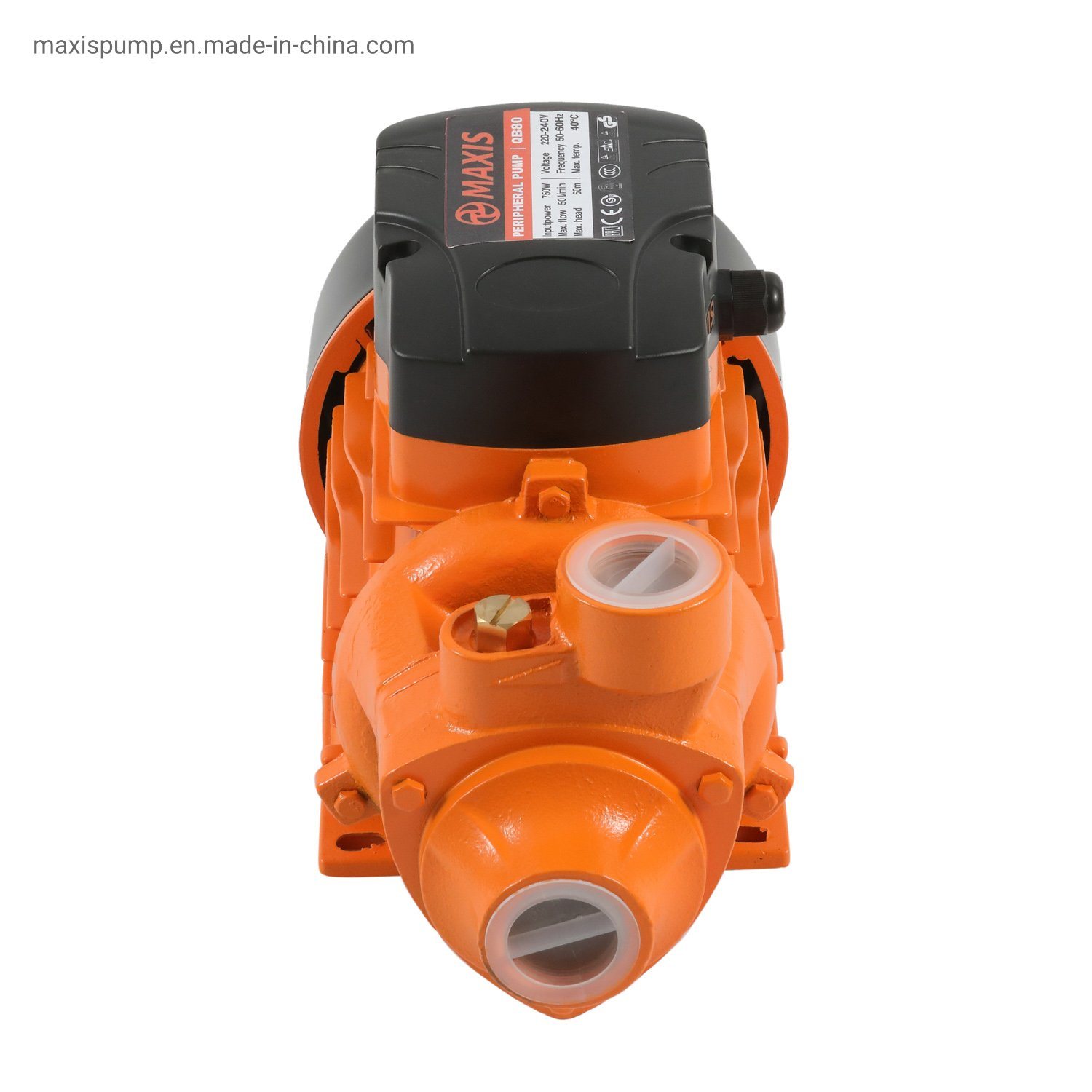

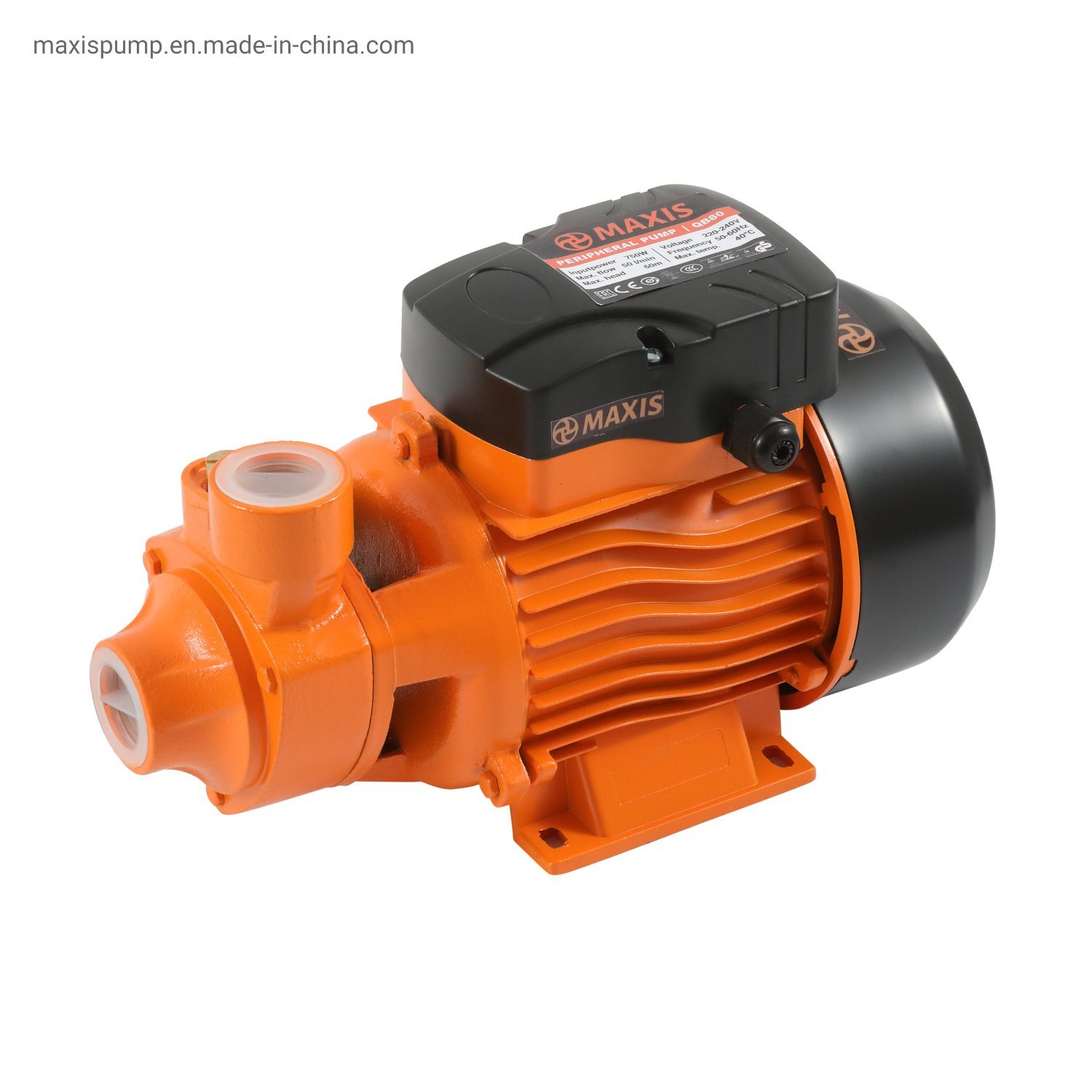

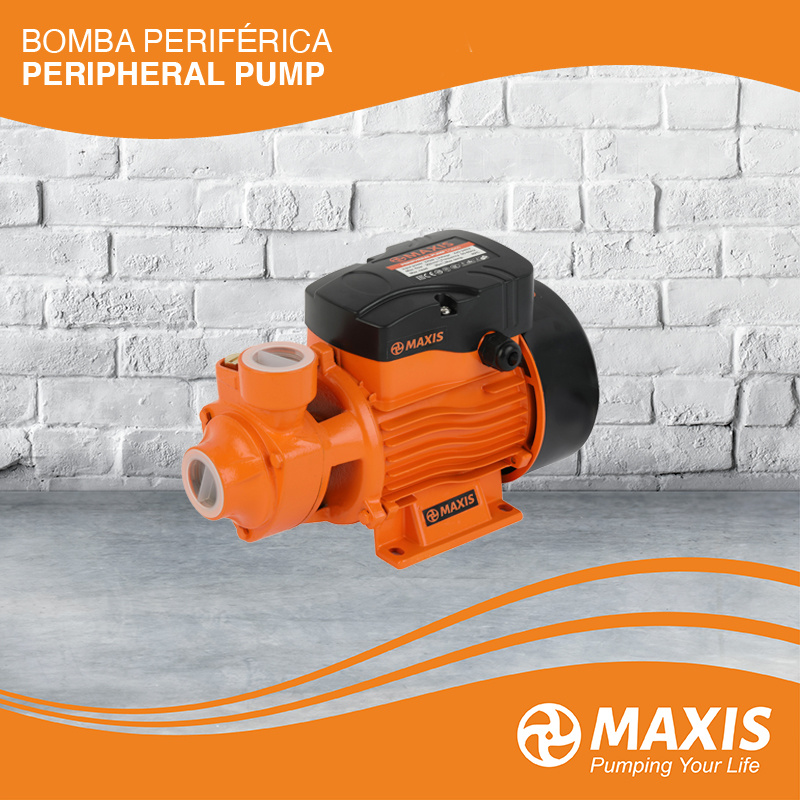

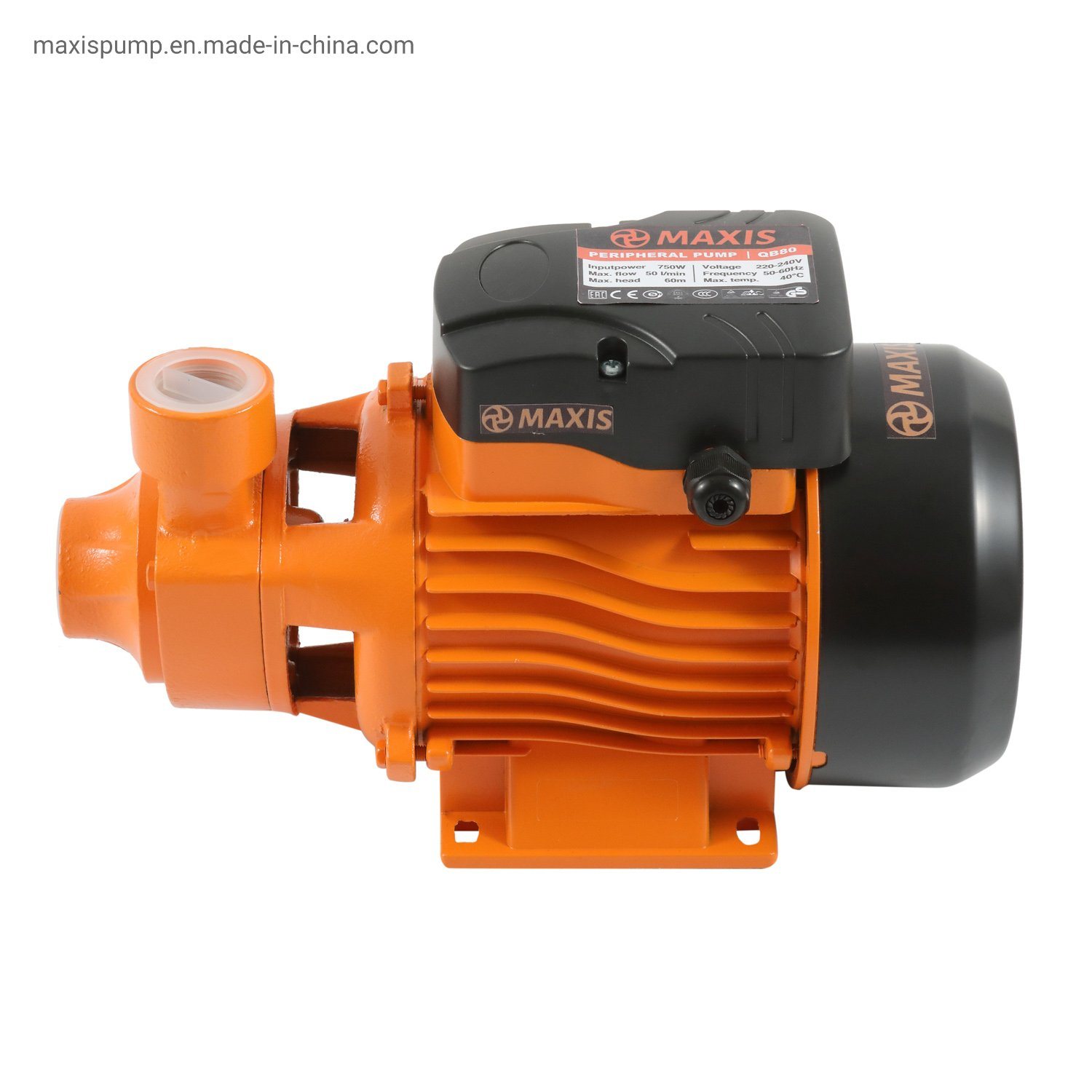

1/2 HP Domestic Cast Iron Housing Qb-60 Clean Water Peripheral Pump

Quantity:
Inquire Add to Basket

1/2 HP Domestic Cast Iron Housing Qb-60 Clean Water Peripheral Pump
1/2 HP Domestic Cast Iron Housing Qb-60 Clean Water Peripheral Pump
1/2 HP Domestic Cast Iron Housing Qb-60 Clean Water Peripheral Pump
1/2 HP Domestic Cast Iron Housing Qb-60 Clean Water Peripheral Pump
1/2 HP Domestic Cast Iron Housing Qb-60 Clean Water Peripheral Pump
1/2 HP Domestic Cast Iron Housing Qb-60 Clean Water Peripheral Pump

  • Free Spare Parts

  • 1 Year

  • 50-80m

  • 50-100 L/min

  • Motor

  • Cast Iron

  • QB60

  • Single-stage Pump

  • Liquid Pumps

  • Electric

  • Electric Pump

  • Peripheral Pump

  • Transfer Water Pump

  • Agriculture

  • Clean Water

  • No Leakage Pump

  • Vortex Pump

  • Color Box

  • Corrugated paper

  • MAXIS

  • China

  • 8413709990

  • 500000PCS/Year

  • US$ 30/Piece 1 Piece(Min.Order) | Request Sample

Application
  1. Can be used to transfer clean water or other liquids similar to water in physical and chemical properties

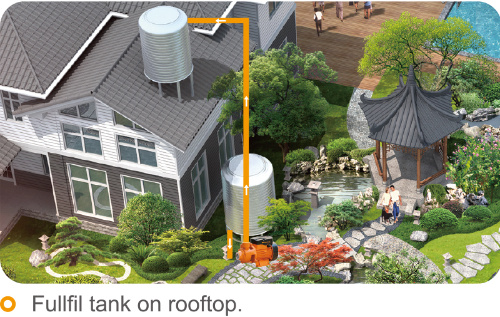

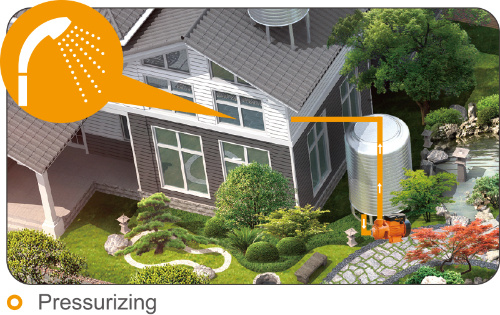

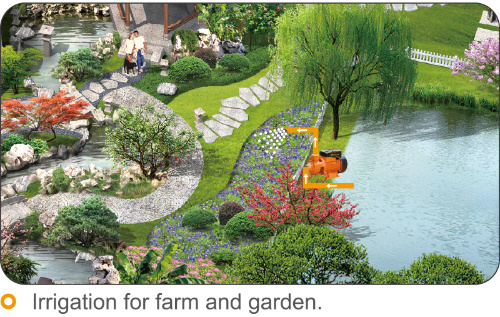

  2. Suitable for lifting water from the well, sprinkling irrigation in garden pressure boosting of running water, and supporting equipment etc
1/2 HP Domestic Cast Iron Housing Qb-60 Clean Water Peripheral Pump 1/2 HP Domestic Cast Iron Housing Qb-60 Clean Water Peripheral Pump 1/2 HP Domestic Cast Iron Housing Qb-60 Clean Water Peripheral Pump
Pump
Special anti-rust treatment for cast iron pump body and support
Anti-block system for impeller
Bass impeller
Motor with cooper/aluminum winding both available
Built-in thermal protector for single phase motor
AISI 304/carbon steel shaft both available
Max.liquid temperature: +40ºC
Max. suction:+8m
1/2 HP Domestic Cast Iron Housing Qb-60 Clean Water Peripheral Pump Techenical Data
Model Power HP Max Flow Max Head Max Suction Inlet / Outlet Protection rating
QB60 370W 1/2 2100 L/H 35 L/Min 35 M 8 M 1'' x 1'' IPX4
QB70 550W 3/4 2400 L/H 40 L/Min 50 M 8 M 1'' x 1'' IPX4
QB80 750W 1 3000 L/H 50 L/Min 60 M 8 M 1'' x 1'' IPX4

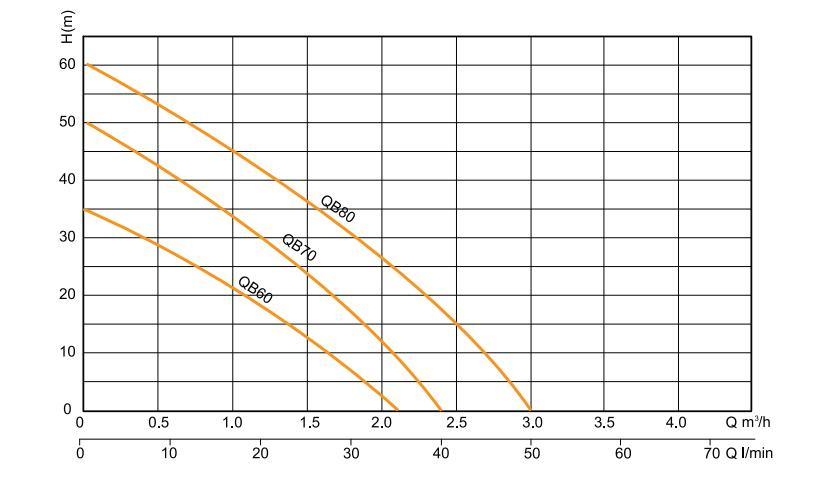

Performance Curve
1/2 HP Domestic Cast Iron Housing Qb-60 Clean Water Peripheral Pump
